CMDA1CG7A1Z
LED GREEN CLEAR 1206 SMDManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More

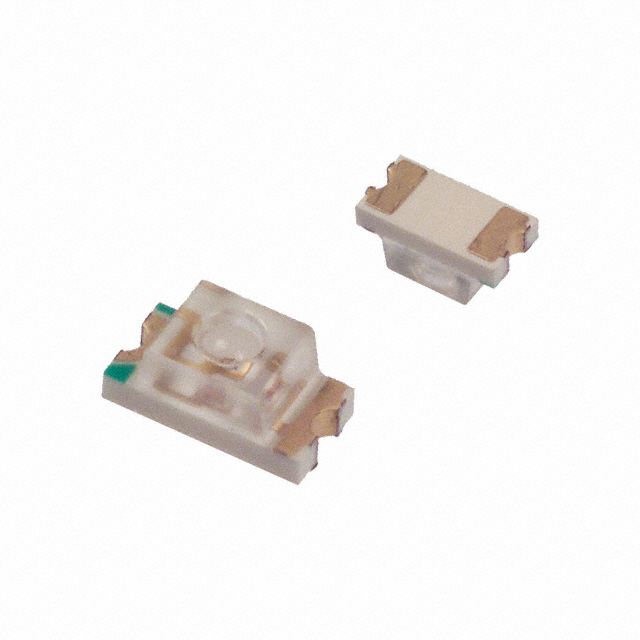

Visual Communications Company (VCC) CMDA1CG7A1Z is a green, 567nm dominant wavelength LED designed for surface mount applications. This discrete component features a 1206 (3016 Metric) package with overall dimensions of 3.00mm L x 1.50mm W and a maximum height of 1.75mm. The clear, flat-top rectangular lens provides a 70° viewing angle. Operating at a typical forward voltage of 2.1V and a test current of 20mA, this LED achieves a millicandela rating of 12mcd. The CMDA1CG7A1Z is supplied in tape and reel packaging, commonly utilized in industrial automation, consumer electronics, and medical device sectors for status indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3016 Metric) |
| Color | Green |
| Size / Dimension | 3.00mm L x 1.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 12mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | 70° |
| Height (Max) | 1.75mm |
| Wavelength - Peak | 560nm |
| Wavelength - Dominant | 567nm |
| Supplier Device Package | 1206 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.80mm x 1.50mm |
