CMDA19DY7D1S
LED AMBER DIFFUSED 0603 SMDManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More

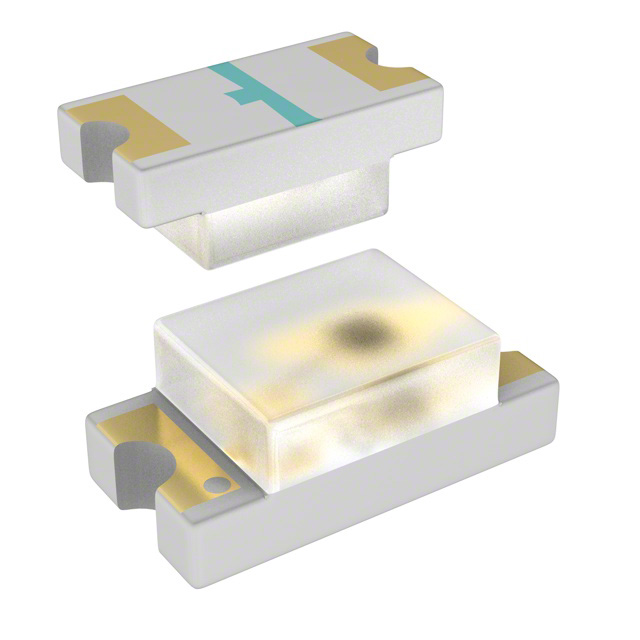

Visual Communications Company VCC CMDA19DY7D1S is an amber diffused LED in an 0603 (1608 Metric) surface mount package. This discrete component features a standard configuration with a typical forward voltage of 1.9V and a test current of 20mA, yielding a millicandela rating of 90mcd. The lens is diffused and rectangular with a flat top, measuring 1.00mm x 0.80mm, contributing to a wide viewing angle of 170°. The component's dimensions are 1.60mm L x 0.80mm W, with a maximum height of 0.60mm. This LED is supplied on tape and reel, making it suitable for automated assembly processes in industries such as industrial automation, consumer electronics, and telecommunications for indicator functions.
Additional Information
Series: CMDA19RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0603 (1608 Metric) |
| Color | Amber |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 90mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.9V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | 170° |
| Height (Max) | 0.60mm |
| Wavelength - Peak | 595nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 0603 |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.00mm x 0.80mm |
