CMD95-21VRC/TR7
LED RED CLEAR GULL WING SMDManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More

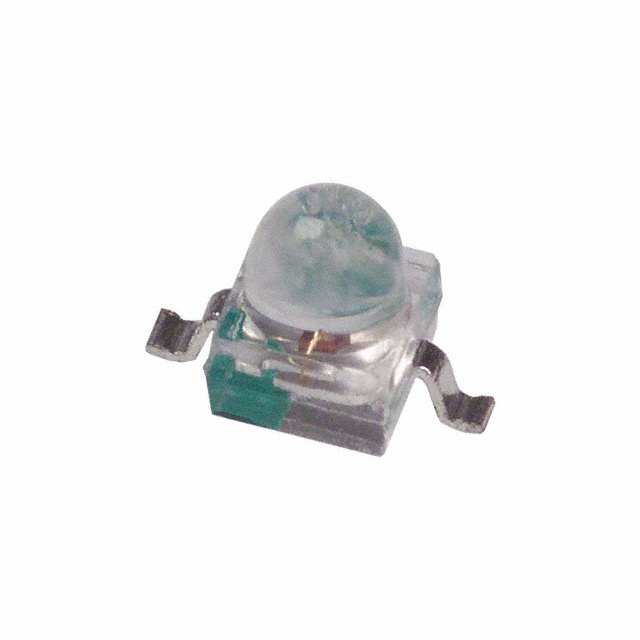

Visual Communications Company - VCC CMD95-21VRC-TR7 is a discrete red LED with a clear lens, designed for surface-mount applications. This component features a Gull Wing package, specifically a 2-SMD configuration, with dimensions of 2.20mm length and 2.10mm width. The LED provides a typical forward voltage of 2V and a peak wavelength of 640nm, delivering 25mcd luminous intensity. Its round, domed top lens offers a 25° viewing angle. Supplied on tape and reel (TR) for automated assembly, this component is suitable for industrial automation, medical devices, and consumer electronics where reliable visual indication is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing |
| Color | Red |
| Size / Dimension | 2.20mm L x 2.10mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 25mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | - |
| Current - Test | - |
| Viewing Angle | 25° |
| Height (Max) | 2.88mm |
| Wavelength - Peak | 640nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Gull Wing |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 1.80mm Dia |
