CMD95-21SRCTR10
LED RED CLEAR ZBEND SMDManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More

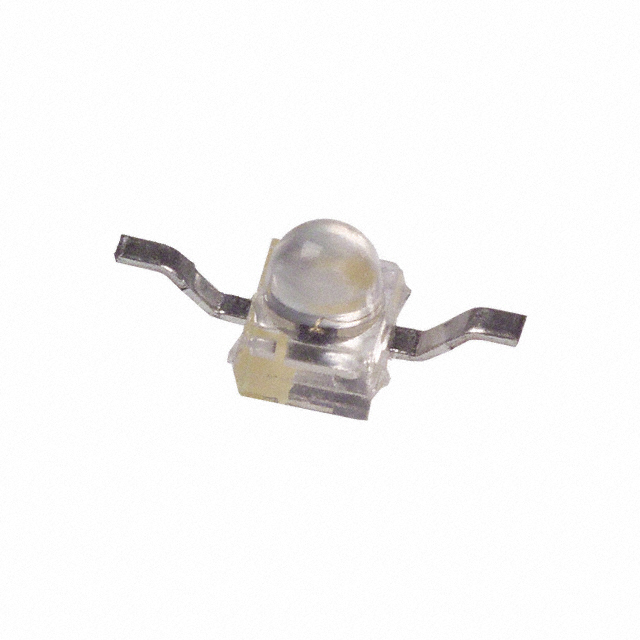

Visual Communications Company (VCC) CMD95-21SRCTR10 is a discrete red LED with a clear, domed lens measuring 1.70mm in diameter. This surface-mount component features a Z-Bend terminal configuration and is supplied in Tape & Reel packaging. It operates with a typical forward voltage (Vf) of 1.7V and emits light with a peak wavelength of 660nm, achieving a millicandela rating of 100mcd at a 25° viewing angle. The overall dimensions are 2.20mm in length and 2.10mm in width, with a maximum height of 2.90mm. This component is suitable for indication purposes across various industries, including industrial automation, consumer electronics, and medical devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Z-Bend |
| Color | Red |
| Size / Dimension | 2.20mm L x 2.10mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 100mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Lens Color | - |
| Current - Test | - |
| Viewing Angle | 25° |
| Height (Max) | 2.90mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Z-Bend |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 1.70mm Dia |
