CMD9322SRVGCTR8
LED GRN/RED CLEAR GULL WING SMDManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More

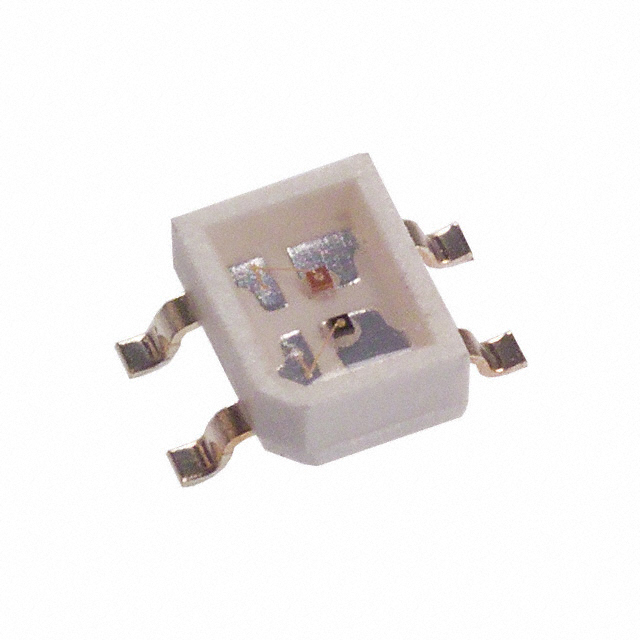

Visual Communications Company (VCC) CMD9322SRVGCTR8 is a 4-SMD, Gull Wing surface mount LED offering dual-color indication in Green and Red. This discrete component features independent control for each color, with typical forward voltage characteristics of 2.1V for Green and 1.7V for Red, both at a 20mA test current. The component provides a luminous intensity of 20mcd for Green and 40mcd for Red, with dominant wavelengths of 570nm (Green) and 660nm (Red). The clear lens has a rectangular shape with a flat top and a wide 125° viewing angle. Dimensions are 3.40mm L x 2.70mm W with a maximum height of 1.60mm. This component is supplied in a Tape & Reel (TR) package and is commonly utilized in industrial control panels, medical equipment, and consumer electronics for status indication.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-SMD, Gull Wing |
| Color | Green, Red |
| Size / Dimension | 3.40mm L x 2.70mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 20mcd Green, 40mcd Red |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 1.7V Red |
| Lens Color | - |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 125° |
| Height (Max) | 1.60mm |
| Wavelength - Peak | 570nm Green, 660nm Red |
| Wavelength - Dominant | - |
| Supplier Device Package | Gull Wing |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | - |
