CMD91-21VYC/TR7
LED YELLOW CLEAR GULL WING SMDManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More

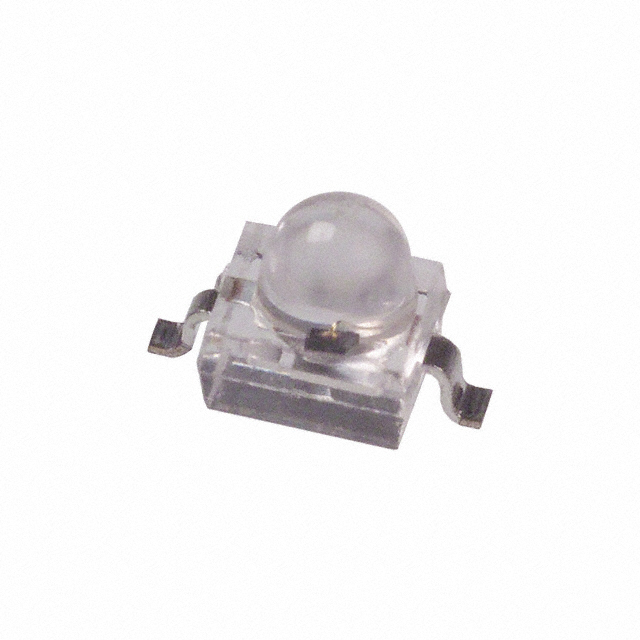

Visual Communications Company (VCC) presents the CMD91-21VYC-TR7, a yellow, clear lens, surface-mount LED designed for discrete indication applications. This component features a gull wing lead style and is supplied in tape and reel packaging. With a typical forward voltage of 2V and a peak wavelength of 585nm, it offers a millicandela rating of 30mcd. The LED has a round, domed top lens with a diameter of 1.90mm and a viewing angle of 25 degrees. Its compact dimensions are 2.50mm in length and 2.00mm in width, with a maximum height of 3.00mm. This component is suitable for use in industrial automation, consumer electronics, and medical devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing |
| Color | Yellow |
| Size / Dimension | 2.50mm L x 2.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 30mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | - |
| Current - Test | - |
| Viewing Angle | 25° |
| Height (Max) | 3.00mm |
| Wavelength - Peak | 585nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Gull Wing |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 1.90mm Dia |
Request a Quote
