CMD91-21VGC/TR9
LED GREEN CLEAR YOKE LEAD SMDManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More

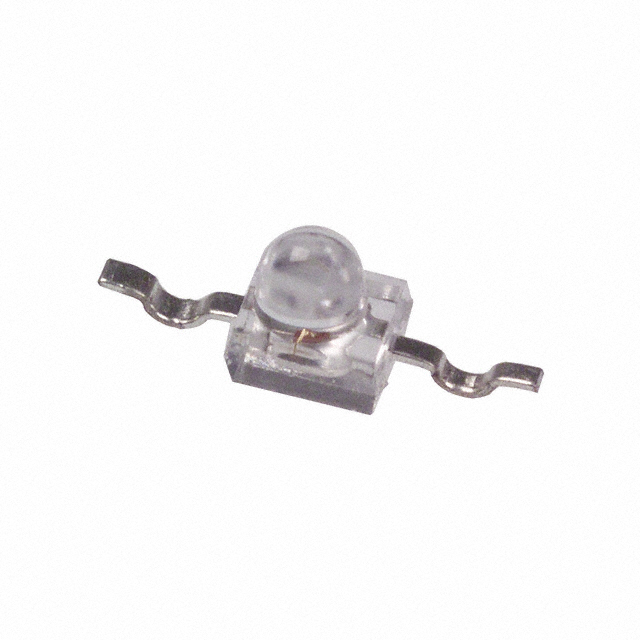

VCC CMD91-21VGC-TR9 is a discrete green LED with a clear, domed lens, designed for surface mount applications. This component features a 2V forward voltage and a peak wavelength of 575nm, delivering a typical luminous intensity of 198 millicandela. The 2-SMD, Yoke Bend package facilitates efficient mounting and is supplied on tape and reel for automated assembly. Its compact dimensions of 2.50mm L x 2.00mm W and a maximum height of 3.00mm make it suitable for space-constrained designs. The 25° viewing angle ensures focused light emission. This LED is commonly utilized in industrial automation, medical equipment, and general indication applications where reliable visual feedback is crucial.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Yoke Bend |
| Color | Green |
| Size / Dimension | 2.50mm L x 2.00mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 198mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | - |
| Current - Test | - |
| Viewing Angle | 25° |
| Height (Max) | 3.00mm |
| Wavelength - Peak | 575nm |
| Wavelength - Dominant | - |
| Supplier Device Package | Yoke Lead |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 1.90mm Dia |
