CMD383UBC
LED BLUE CLEAR T-1 3/4 T/HManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More

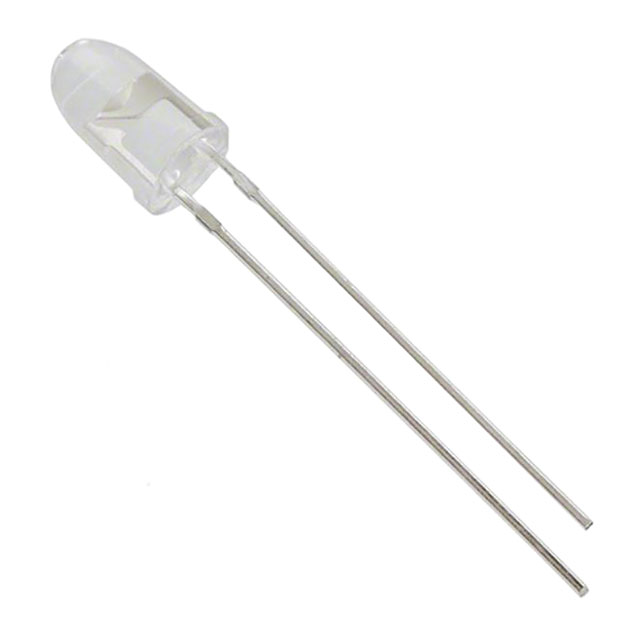

Visual Communications Company (VCC) CMD383UBC is a through-hole mounted, discrete blue LED designed for indication applications. This T-1 3/4 package features a clear, domed lens and a standard radial configuration. With a typical forward voltage (Vf) of 3.8V and a forward current (If) of 20mA, it achieves a luminous intensity of 800mcd at its peak wavelength of 430nm. The narrow viewing angle of 12° makes it suitable for applications requiring focused light output. This component is commonly utilized in industrial control systems, medical equipment, and automotive electronics where reliable visual feedback is critical. Supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Blue |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 800mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 3.8V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | 12° |
| Height (Max) | 8.61mm |
| Wavelength - Peak | 430nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
