CMD3750
LED RED CLEAR T-1 3/4 T/HManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More

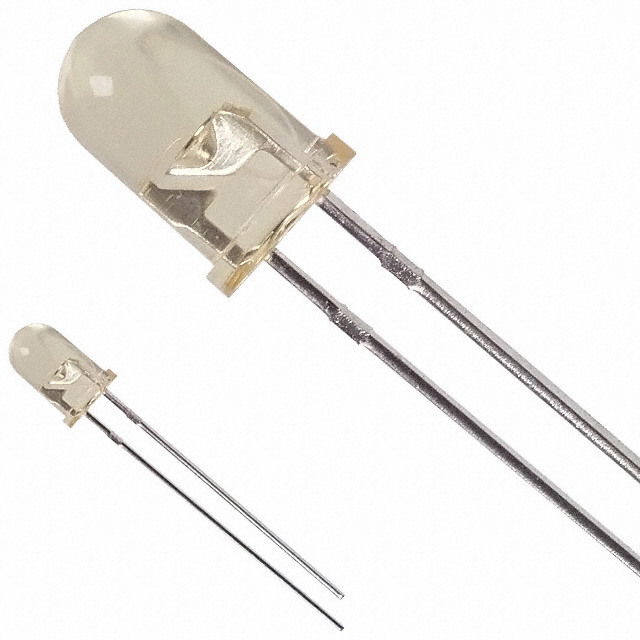

Visual Communications Company (VCC) CMD3750 is a red, clear lens, T-1 3/4 through-hole LED with a forward voltage of 2.2V typical at 20mA. This discrete indicator features a domed top lens and a 24° viewing angle, providing a peak wavelength of 635nm. The CMD3750 offers a luminous intensity of 150mcd, making it suitable for various indication applications across industrial, medical, and consumer electronics sectors. The component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 150mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | Red |
| Current - Test | 20mA |
| Viewing Angle | 24° |
| Height (Max) | 8.89mm |
| Wavelength - Peak | 635nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
