CMD204UWC

LED WHITE CLEAR T-1 T/H

Manufacturer: Visual Communications Company - VCC

Categories: LED Indication - Discrete

Quality Control: Learn More

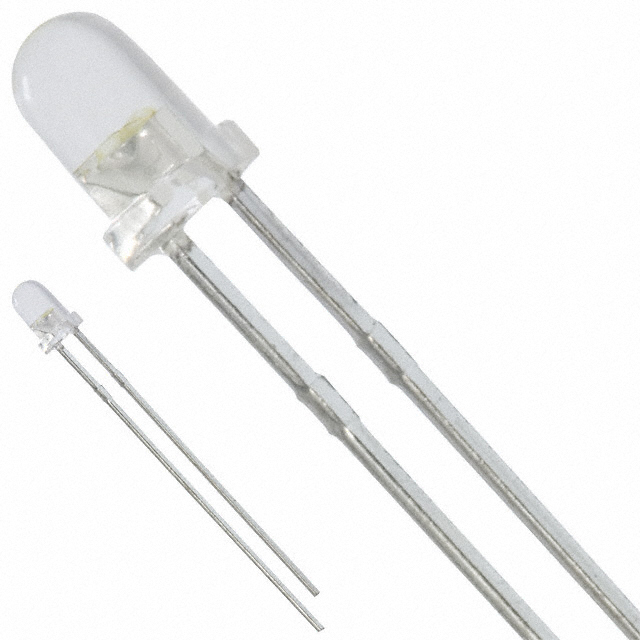

Visual Communications Company (VCC) CMD204UWC is a white LED with a clear, domed T-1 radial package. This discrete indicator component is designed for through-hole mounting and operates with a typical forward voltage of 3.7V. The LED provides a luminous intensity of 1000mcd at a standard test current of 20mA, with a narrow viewing angle of 22°. Its colorless lens and clear transparency ensure efficient light emission. This component is suitable for applications in industrial control, instrumentation, and general status indication.

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ObsoletePackaging: Bulk
Technical Details:
Features-
PackagingBulk
Package / CaseRadial
ColorWhite
Size / Dimension-
Mounting TypeThrough Hole
Millicandela Rating1000mcd
ConfigurationStandard
Voltage - Forward (Vf) (Typ)3.7V
Lens ColorColorless
Current - Test20mA
Viewing Angle22°
Height (Max)5.40mm
Wavelength - Peak475nm
Wavelength - Dominant-
Supplier Device PackageT-1
Lens TransparencyClear
Lens StyleRound with Domed Top
Lens Size3mm, T-1
