CMD1522VRVGCTR8
LED GREEN/RED CLEAR 1206 SMDManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More

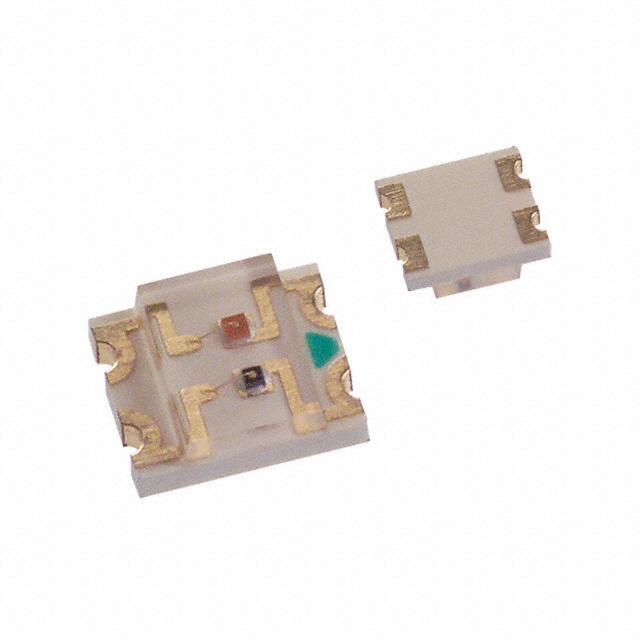

Visual Communications Company - VCC CMD1522VRVGCTR8 is a dual-color LED designed for surface mounting. This component features independent Green and Red emitters within a 1210 (3225 Metric) package. The Green LED typically operates at a forward voltage of 2.1V with a current of 20mA, producing a dominant wavelength of 570nm and a millicandela rating of 10mcd. The Red LED requires a forward voltage of 2.8V at 20mA, with a dominant wavelength of 640nm and a millicandela rating of 20mcd. The device has a clear, colorless lens with a flat-top rectangular shape, measuring 2.70mm x 2.00mm. The overall dimensions of the component are 3.20mm in length and 2.70mm in width, with a maximum height of 1.10mm. This LED is supplied in Tape & Reel packaging and is suitable for applications in industrial automation and signaling systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1210 (3225 Metric) |
| Color | Green, Red |
| Size / Dimension | 3.20mm L x 2.70mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 10mcd Green, 20mcd Red |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2.8V Red |
| Lens Color | Colorless |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | - |
| Height (Max) | 1.10mm |
| Wavelength - Peak | 570nm Green, 640nm Red |
| Wavelength - Dominant | - |
| Supplier Device Package | 1206 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.70mm x 2.00mm |
