CMD15-21UGC/TR8
LED GREEN CLEAR 1206 SMDManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More

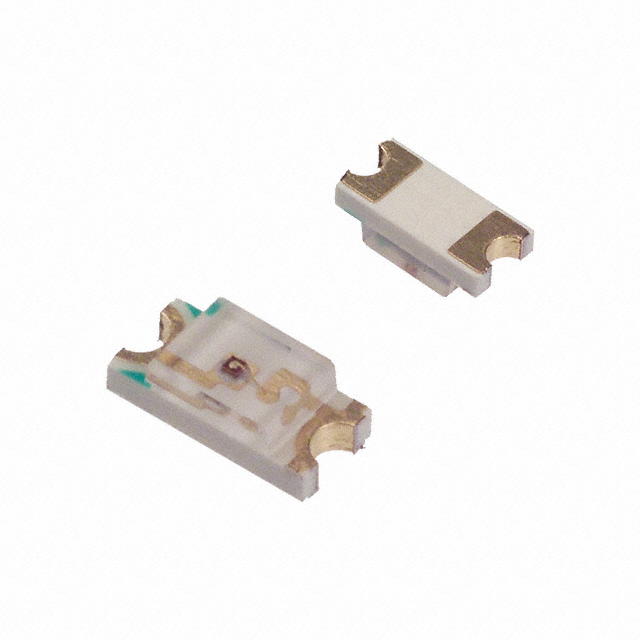

Visual Communications Company (VCC) CMD15-21UGC-TR8 is a green, clear LED with a 1206 (3216 Metric) surface-mount package. This discrete indicator features a forward voltage (Vf) of 2.1V and a typical test current of 20mA, achieving a millicandela rating of 12mcd. The 1206 package measures 3.20mm L x 1.50mm W with a lens height of 1.30mm. The lens is colorless and rectangular with a flat top, offering clear transparency. This component is suitable for general indication applications across various industries, including consumer electronics and industrial automation. The CMD15-21 series is supplied in Tape & Reel packaging.
Additional Information
Series: CMD15-21RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Color | Green |
| Size / Dimension | 3.20mm L x 1.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 12mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 1.30mm |
| Wavelength - Peak | 565nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 1206 |
| Lens Transparency | Clear |
| Grade | - |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.50mm |
| Qualification | - |
