7012X13
LED YELLOW CLEAR 0805 SMDManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More

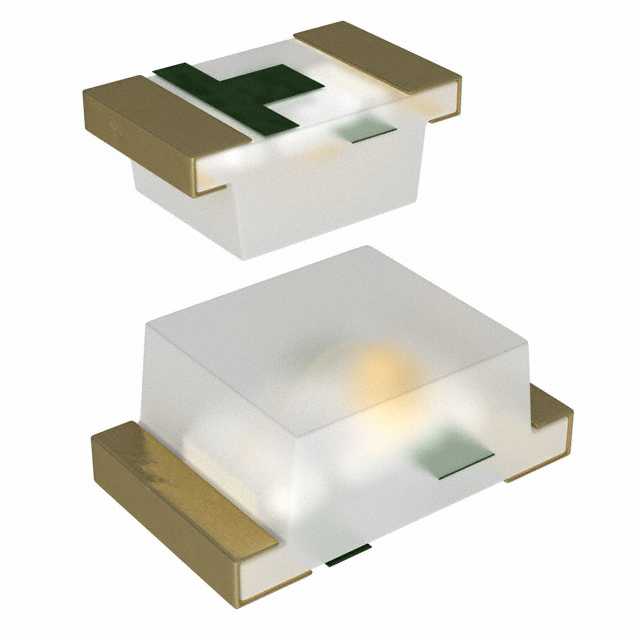

Visual Communications Company - VCC BrightChips™ 7012X13 is a yellow, surface-mount LED designed for illumination and status indication. This discrete component features a 0805 (2012 Metric) package with dimensions of 2.00mm x 1.25mm and a maximum height of 0.79mm. The clear, rectangular lens with a flat top offers a 580nm peak wavelength. The LED operates with a typical forward voltage of 2.2V and a test current of 20mA, producing a millicandela rating of 3.7mcd. It is supplied on tape and reel for automated assembly. This component is widely utilized in industrial automation, consumer electronics, and medical device applications.
Additional Information
Series: BrightChips™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 0805 (2012 Metric) |
| Color | Yellow |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 3.7mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2.2V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | - |
| Height (Max) | 0.79mm |
| Wavelength - Peak | 580nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 0805 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.19mm x 1.25mm |
