7010X5-A
LED YLW-GRN CLEAR 1206 SMDManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More

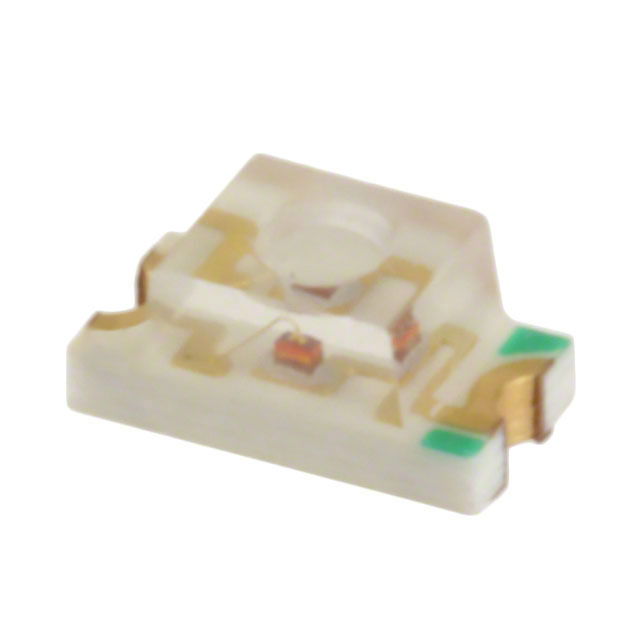

Visual Communications Company (VCC) 7010X5-A is a yellow-green, clear lens, rectangular LED with a flat top designed for surface mount applications. This discrete indicator component operates with a typical forward voltage of 2V and a test current of 20mA, producing a millicandela rating of 52mcd. The dominant wavelength is 573nm, with a peak wavelength of 575nm, and features a 60° viewing angle. Packaged in a 1206 (3016 Metric) case, measuring 3.00mm L x 1.50mm W and a maximum height of 1.70mm, this component is suitable for use in industrial automation, consumer electronics, and telecommunications equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 1206 (3016 Metric) |
| Color | Yellow-Green |
| Size / Dimension | 3.00mm L x 1.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 52mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 2V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 60° |
| Height (Max) | 1.70mm |
| Wavelength - Peak | 575nm |
| Wavelength - Dominant | 573nm |
| Supplier Device Package | 1206 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 2.00mm x 1.25mm |
