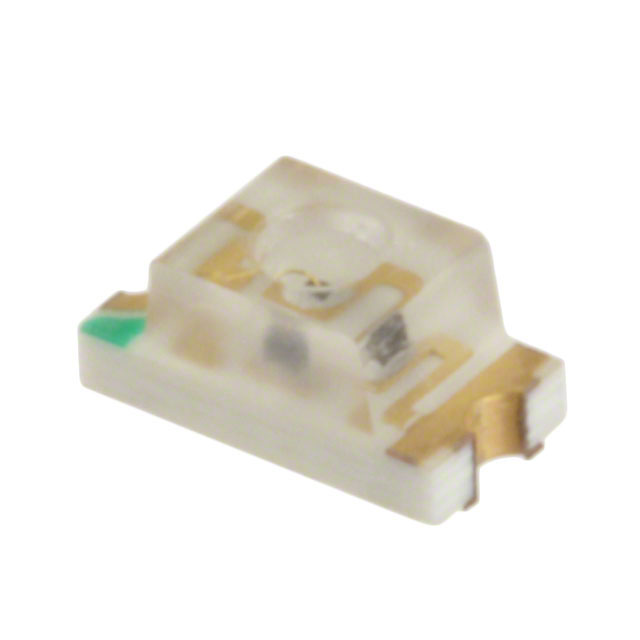

7010X11
LED RED CLEAR 1206 SMDManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More
Visual Communications Company (VCC) 7010X series red LED, part number 7010X11. This discrete LED is designed for surface mount applications with a 1206 (3016 Metric) package. It features a clear, colorless lens with a flat top in a rectangular shape, measuring 1.80mm x 1.50mm. The LED offers a typical forward voltage of 1.7V and a peak wavelength of 660nm, providing 17mcd luminous intensity at a standard 20mA test current. Its dimensions are 3.00mm in length and 1.50mm in width, with a maximum height of 1.50mm. The viewing angle is 70°. This component is commonly utilized in industrial automation, consumer electronics, and medical device applications requiring reliable visual indication. Supplied on tape and reel (TR).
Additional Information
Series: 7010XRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3016 Metric) |
| Color | Red |
| Size / Dimension | 3.00mm L x 1.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 17mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Lens Color | Colorless |
| Current - Test | 20mA |
| Viewing Angle | 70° |
| Height (Max) | 1.50mm |
| Wavelength - Peak | 660nm |
| Wavelength - Dominant | - |
| Supplier Device Package | 1206 |
| Lens Transparency | Clear |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.80mm x 1.50mm |
Request a Quote
Clients Also Buy
7010X1
LED RED CLEAR 1206 SMD

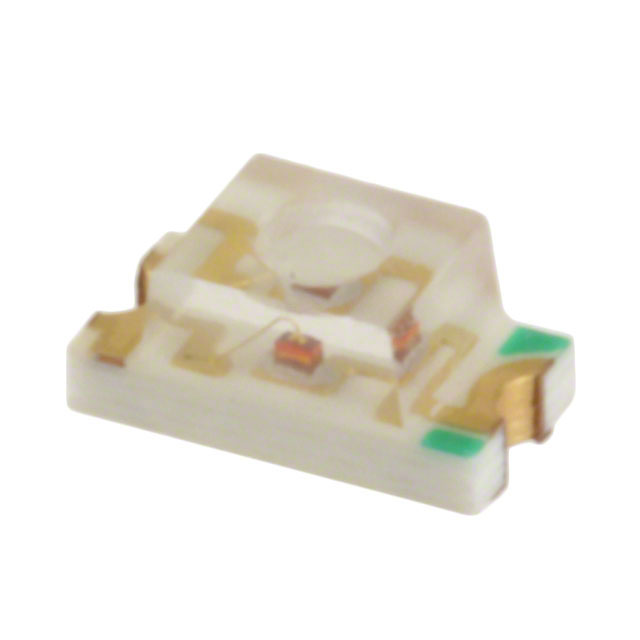

7010X3
