4361H1/5
LED GRN/RED DIFFUSED T-1 3/4 T/HManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More

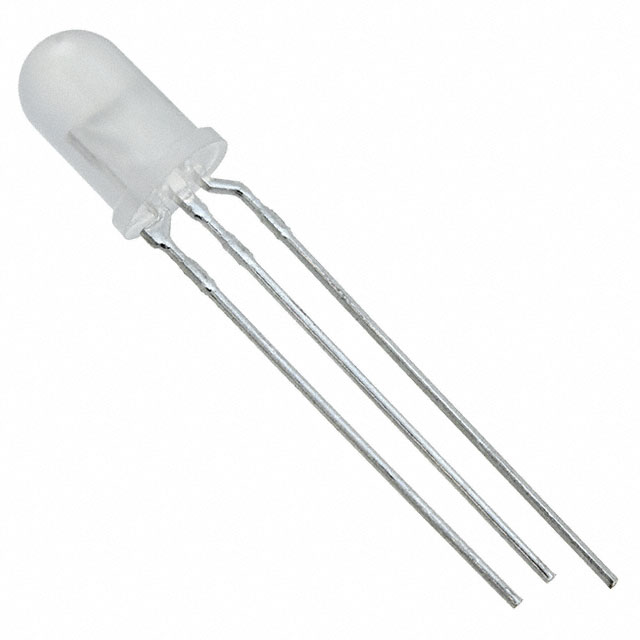

Visual Communications Company (VCC) 4361H1-5 is a diffused, through-hole mounted LED indication component featuring a dual Green/Red color output. This T-1 3/4 package offers a common cathode configuration with typical forward voltages of 2.1V for Green and 2V for Red. Tested at 10mA, the Green emitter provides 10 mcd luminous intensity with a peak wavelength of 563nm, while the Red emitter offers 6.3 mcd luminous intensity with a peak wavelength of 650nm. The 40° viewing angle and diffused, round domed lens in white are suitable for applications in industrial control, consumer electronics, and telecommunications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Green, Red |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 10mcd Green, 6.3mcd Red |
| Configuration | Common Cathode |
| Voltage - Forward (Vf) (Typ) | 2.1V Green, 2V Red |
| Lens Color | White |
| Current - Test | 10mA Green, 10mA Red |
| Viewing Angle | 40° |
| Height (Max) | - |
| Wavelength - Peak | 563nm Green, 650nm Red |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
