4304H6
LED BLUE DIFFUSED T-1 3/4 T/HManufacturer: Visual Communications Company - VCC
Categories: LED Indication - Discrete
Quality Control: Learn More

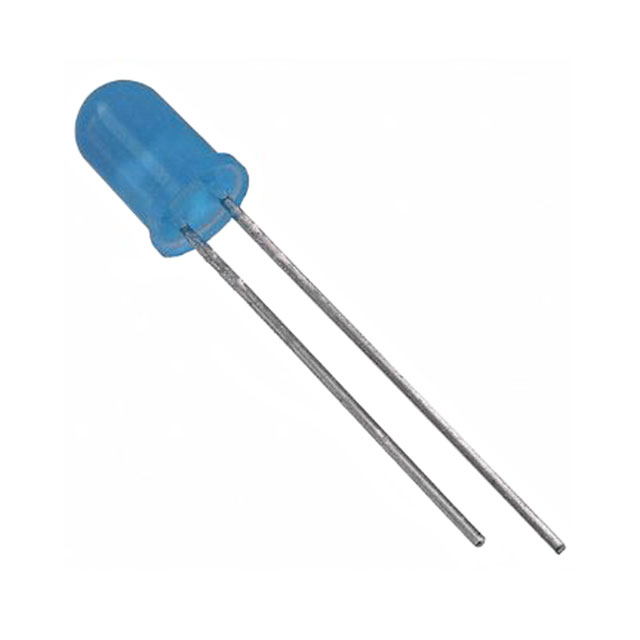

Visual Communications Company (VCC) 4304H6 is a T-1 3/4 (5mm) through-hole mounted blue diffused LED from the 4304H series. This component offers a typical forward voltage of 5V and a test current of 20mA, producing 160mcd luminous intensity with a 40° viewing angle. The diffused lens provides a soft, uniform light output. This discrete LED is suitable for indication applications in industries such as industrial automation, medical equipment, and consumer electronics. The component is supplied in bulk packaging.
Additional Information
Series: 4304HRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Color | Blue |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 160mcd |
| Configuration | Standard |
| Voltage - Forward (Vf) (Typ) | 5V |
| Lens Color | - |
| Current - Test | 20mA |
| Viewing Angle | 40° |
| Height (Max) | 9.98mm |
| Wavelength - Peak | 430nm |
| Wavelength - Dominant | - |
| Supplier Device Package | T-1 3/4 (5mm) |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
Request a Quote
