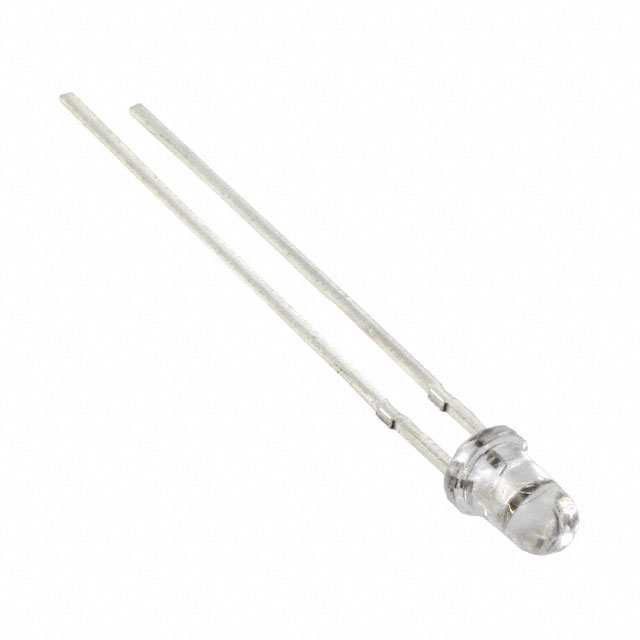

VAOL-3EUV8Y4
EMITTER UV 385NM 30MA RADIALManufacturer: Visual Communications Company - VCC
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Visual Communications Company - VCC VAOL-3EUV8Y4 Ultraviolet Emitter. This radial-mount, through-hole component delivers 385nm UV output with a typical forward voltage of 3V and a maximum forward current of 30mA. Featuring a narrow 30° viewing angle, this high-intensity emitter is suitable for applications requiring precise UV illumination. Its compact radial package and through-hole mounting facilitate integration into various PCB designs. Operating within a temperature range of -20°C to 80°C, this device finds utility in applications such as UV curing, sterilization, counterfeit detection, and fluorescence excitation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 385nm |
| Mounting Type | Through Hole |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | -20°C ~ 80°C (TA) |
| Voltage - Forward (Vf) (Typ) | 3V |
| Viewing Angle | 30° |
| Current - DC Forward (If) (Max) | 30mA |
| Radiant Intensity (Ie) Min @ If | - |
Request a Quote
Clients Also Buy
VAOL-5EUV0T4
EMITTER UV 405NM 30MA RADIAL

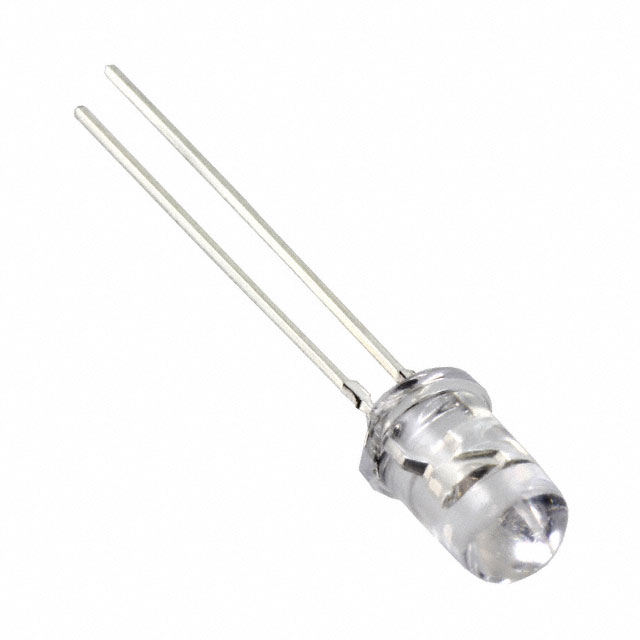

VAOL-5GUV8T4
EMITTER UV 385NM 30MA RADIAL

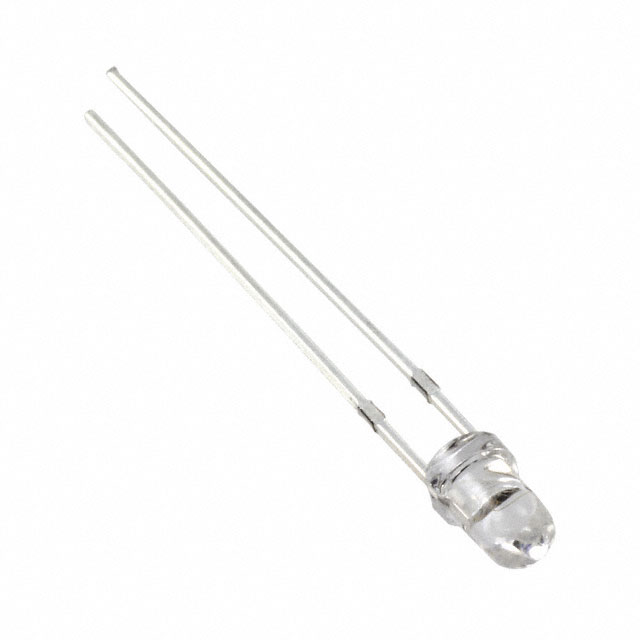

VAOL-3GUV0Y4
