VAOM-A07573W8-ZW/40
DIS LED 0.7"" DOT MATRIX REDManufacturer: Visual Communications Company - VCC
Categories: LED Dot Matrix and Cluster
Quality Control: Learn More

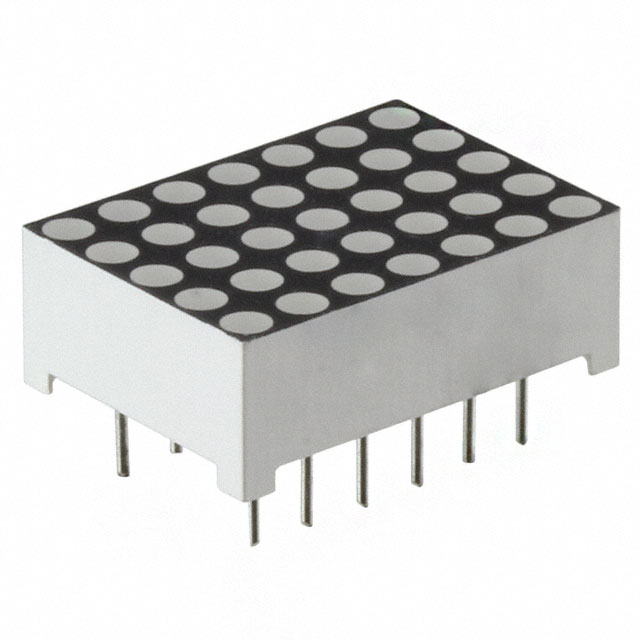

Visual Communications Company's (VCC) VAOM-A07573W8-ZW-40 is a 0.7-inch, red LED dot matrix display module featuring a 5x7 configuration. This component utilizes a common cathode row and common anode column internal connection scheme, simplifying driver circuitry for matrix addressing. The module operates with a typical forward voltage of 2V and offers a luminous intensity of 35 millicandela, ensuring clear visibility for alphanumeric and graphical representations. Its compact dimensions of 17.78mm (L) x 12.70mm (W) x 6.35mm (H) make it suitable for integration into various electronic systems. This display technology finds application in areas such as industrial control panels, point-of-sale terminals, and custom user interfaces where clear visual feedback is critical. The VAOM-A07573W8-ZW-40 is supplied in tube packaging for efficient handling and assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Color | Red |
| Size / Dimension | 0.70"" L x 0.50"" W x 0.25"" H (17.78mm x 12.70mm x 6.35mm) |
| Interface | - |
| Millicandela Rating | 35mcd |
| Configuration | 5 x 7 |
| Voltage - Forward (Vf) (Typ) | 2V |
| Internal Connection | Common Cathode Row, Common Anode Column |
Request a Quote
