VAOS-C301G9-BW/40
DISPLAY 7SEG 0.3"" SGL GRN 14DIPManufacturer: Visual Communications Company - VCC
Categories: LED Character and Numeric
Quality Control: Learn More

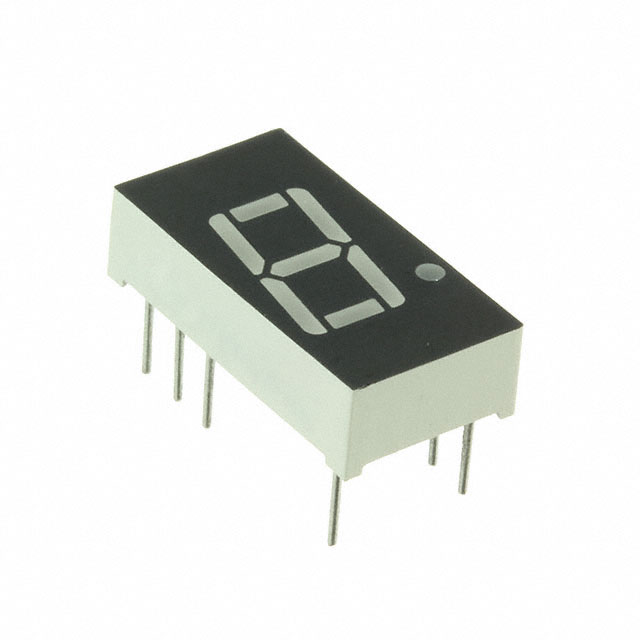

Visual Communications Company (VCC) VAOS-C301G9-BW-40 is a single-digit, 7-segment display module featuring a bright green illumination. This component utilizes a common cathode configuration and operates with a typical forward voltage of 2.1V at 20mA test current, yielding a millicandela rating of 3.5mcd. The display character height is 0.30 inches (7.62mm). Packaged in a 14-DIP (0.300", 7.62mm) format, the module measures 0.748" H x 0.400" W x 0.217" D (19.00mm x 10.10mm x 5.50mm). The peak wavelength for the green emission is 565nm. This component is suitable for applications in industrial control, medical equipment, and consumer electronics requiring clear numeric or alphanumeric readouts.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.748"" H x 0.400"" W x 0.217"" D (19.00mm x 10.10mm x 5.50mm) |
| Number of Characters | 1 |
| Millicandela Rating | 3.5mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.30"" (7.62mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Wavelength - Peak | 565nm |
| Power Dissipation (Max) | 70mW |
