VAOS-A402S9-BW/50
DISPLAY 7-SEG 0.4"" SGL RED 14DIPManufacturer: Visual Communications Company - VCC
Categories: LED Character and Numeric
Quality Control: Learn More

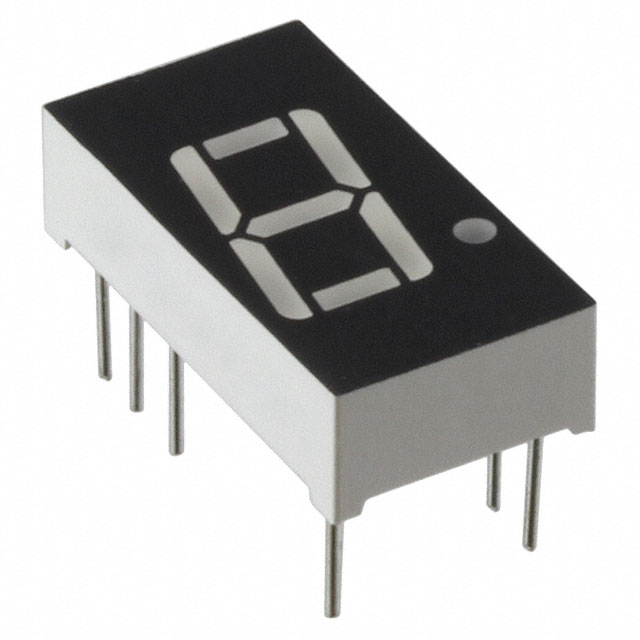

The Visual Communications Company (VCC) VAOS-A402S9-BW-50 is a single-digit, 7-segment numeric display module featuring a distinct red illumination. This component is configured with a common anode pinout, operating at a typical forward voltage of 1.8V and a test current of 20mA, yielding a luminance of 7.5mcd. The character height measures 0.40 inches (10.16mm), with overall module dimensions of 0.736 inches (18.70mm) Height, 0.386 inches (9.80mm) Width, and 0.201 inches (5.10mm) Depth. It is housed in a 14-DIP package with 0.300-inch (7.62mm) pin spacing. This display is suitable for applications in industrial control, medical instrumentation, and consumer electronics where clear numeric indication is required. The part is supplied in tube packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 14-DIP (0.300"", 7.62mm) |
| Color | Red |
| Display Type | 7-Segment |
| Size / Dimension | 0.736"" H x 0.386"" W x 0.201"" D (18.70mm x 9.80mm x 5.10mm) |
| Number of Characters | 1 |
| Millicandela Rating | 7.5mcd |
| Common Pin | Common Anode |
| Digit/Alpha Size | 0.40"" (10.16mm) |
| Voltage - Forward (Vf) (Typ) | 1.8V |
| Current - Test | 20mA |
| Wavelength - Peak | 660nm |
| Power Dissipation (Max) | 75mW |
