VAOD-C403G9-BW/45
DISPLAY 7SEG 0.4"" DBL GRN 10DIPManufacturer: Visual Communications Company - VCC
Categories: LED Character and Numeric
Quality Control: Learn More

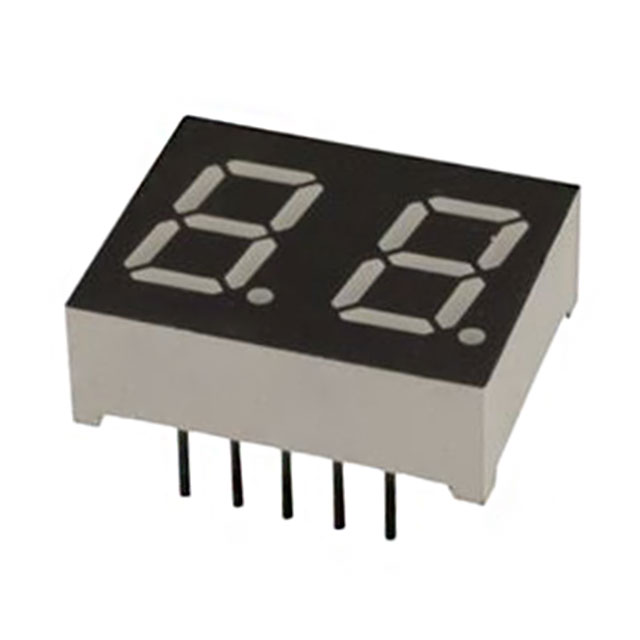

Visual Communications Company - VCC VAOD-C403G9-BW-45 features a 2-character, 0.4-inch green 7-segment display with a common cathode configuration. This component operates at a typical forward voltage of 2.1V and a test current of 20mA, yielding a minimum luminous intensity of 7mcd. The display dimensions are 0.790" H x 0.630" W x 0.280" D (20.10mm x 16.00mm x 7.00mm). Packaged in a 10-DIP (0.300", 7.62mm) format, it is supplied in tubes. The peak wavelength for the green emission is 565nm. This display module is suitable for applications in industrial automation, instrumentation, and consumer electronics requiring clear numerical or character readouts.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 10-DIP (0.300"", 7.62mm) |
| Color | Green |
| Display Type | 7-Segment |
| Size / Dimension | 0.790"" H x 0.630"" W x 0.280"" D (20.10mm x 16.00mm x 7.00mm) |
| Number of Characters | 2 |
| Millicandela Rating | 7mcd |
| Common Pin | Common Cathode |
| Digit/Alpha Size | 0.40"" (10.16mm) |
| Voltage - Forward (Vf) (Typ) | 2.1V |
| Current - Test | 20mA |
| Wavelength - Peak | 565nm |
| Power Dissipation (Max) | 70mW |
