CMW01R
LED CBI 3MM RED DIFF RAManufacturer: Visual Communications Company - VCC
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

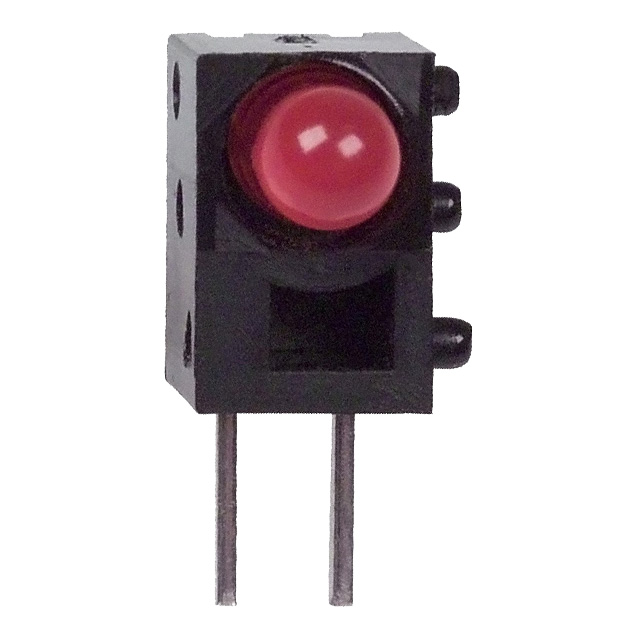

Visual Communications Company (VCC) CMW01R is a single, red diffused, tinted LED circuit board indicator. This 3mm, T-1 package features a round, domed top lens and a right-angle, through-hole mounting configuration. Operating at a forward voltage of 2V and a current of 20mA, it provides a typical millicandela rating of 20mcd with a wide 130° viewing angle. The peak wavelength is 625nm. This component is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication. Supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Red |
| Voltage Rating | 2V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 20mcd |
| Configuration | Single |
| Viewing Angle | 130° |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 625nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
