5694F1_1_1_1-A
LED CBI 3MM QUAD RED RAManufacturer: Visual Communications Company - VCC
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

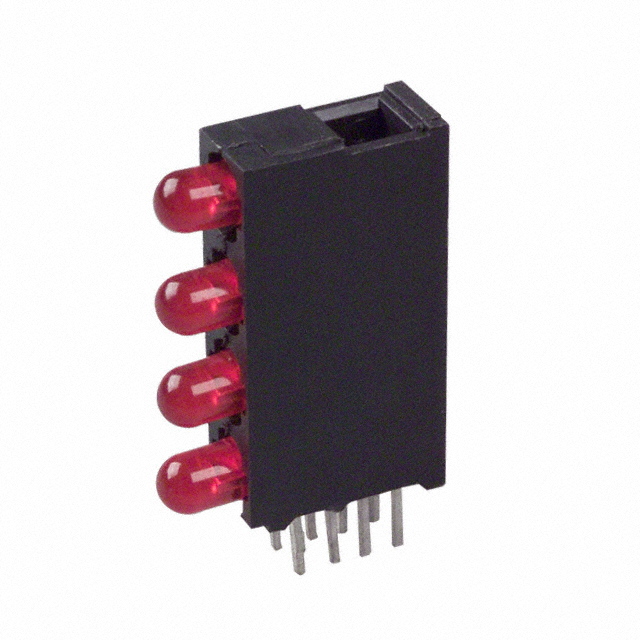

Visual Communications Company (VCC) 5694F-A series, part number 5694F1-1-1-1-A, is a quad LED circuit board indicator. This component features four high-intensity red LEDs, each with a typical forward voltage of 2.2V and a forward current rating of 10mA. The LEDs are housed in a 3mm (T-1) package with a round, domed top lens style. Designed for right-angle mounting, this through-hole component facilitates efficient board space utilization. The optical characteristics include a peak wavelength of 635nm and a millicandela rating of 10mcd per LED. This indicator is suitable for applications in industrial control, medical equipment, and consumer electronics where precise visual feedback on circuit board status is required. Packaged in bulk.
Additional Information
Series: 5694F-ARoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 10mA |
| Color | Red (x 4) |
| Voltage Rating | 2.2V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 10mcd |
| Configuration | 4 High |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | 635nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
Request a Quote
Clients Also Buy
5694F1_7_5_5-A
LED CBI 3MM QUAD GRN/RED/YL

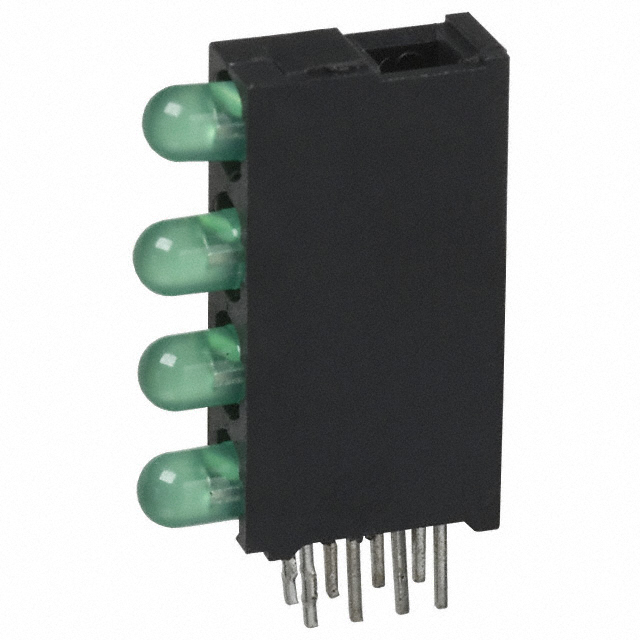

5694F5_5_5_5-A
LED CBI 3MM QUAD GRN RA

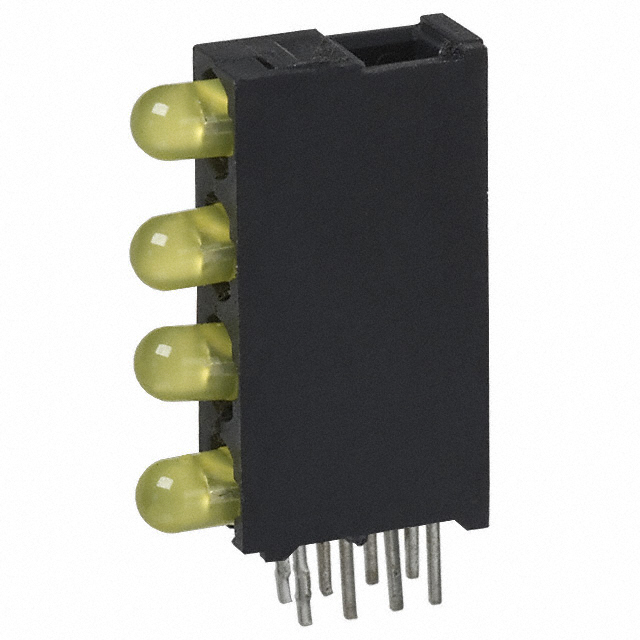

5694F7_7_7_7-A
