5693F5_7_7-A
LED CBI 3MM 3X1 GRN/YL ASSYManufacturer: Visual Communications Company - VCC
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More
Visual Communications Company (VCC) 5693F-A Series LED Circuit Board Indicator, part number 5693F5-7-7-A, features a 3mm (T-1) domed top lens for a round profile. This multi-color assembly integrates one green LED and two yellow LEDs in a 3-high configuration. The green LED operates at 2.2V and 30mA with a typical peak wavelength of 562nm and a millicandela rating of 16mcd. The yellow LEDs operate at 2.1V and 30mA, with a peak wavelength of 585nm and a millicandela rating of 6.3mcd. This component is commonly utilized in industrial automation, medical equipment, and consumer electronics for status indication and panel mounting applications. Supplied in bulk packaging.
Additional Information
Series: 5693F-ARoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 30mA Green, 30mA Yellow |
| Color | Green (x 1), Yellow (x 2) |
| Voltage Rating | 2.2V Green, 2.1V Yellow |
| Millicandela Rating | 16mcd Green, 6.3mcd Yellow |
| Configuration | 3 High |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | 562nm, 585nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
Request a Quote
Clients Also Buy

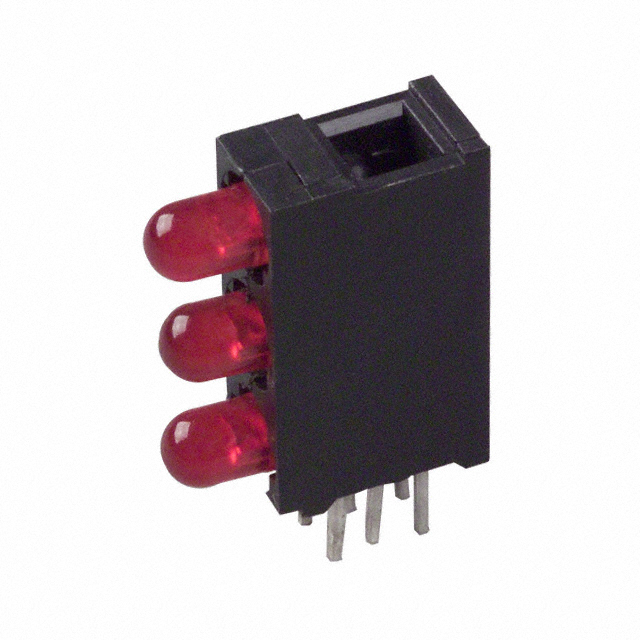

5693F1_1_1-A
