5655F3
LED CBI 3MM AMBER RA PCBManufacturer: Visual Communications Company - VCC
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More
Visual Communications Company (VCC) 5655F3 is a single, right-angle LED Circuit Board Indicator (CBI) from the 5655 series. This component features a 3mm (T-1) round, domed, tinted amber lens with a typical forward voltage of 2.2V and a continuous forward current rating of 10mA. The peak wavelength is 603nm, delivering a millicandela rating of 7mcd. Designed for through-hole mounting, its right-angle configuration facilitates PCB space optimization. This component is commonly utilized in industrial control systems, medical equipment, and consumer electronics for status indication and panel illumination. The VCC 5655F3 is supplied in Tape & Reel packaging.
Additional Information
Series: 5655RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Current | 10mA |
| Color | Amber |
| Voltage Rating | 2.2V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 7mcd |
| Configuration | Single |
| Viewing Angle | - |
| Lens Type | Tinted |
| Wavelength - Peak | 603nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
Request a Quote
Clients Also Buy

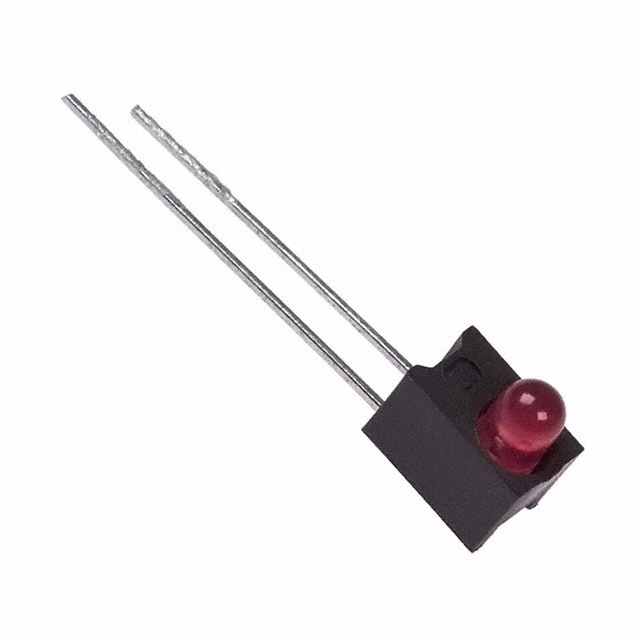

5655F1
