5640H7
LED CBI 5MM QUAD YELLOW RAManufacturer: Visual Communications Company - VCC
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

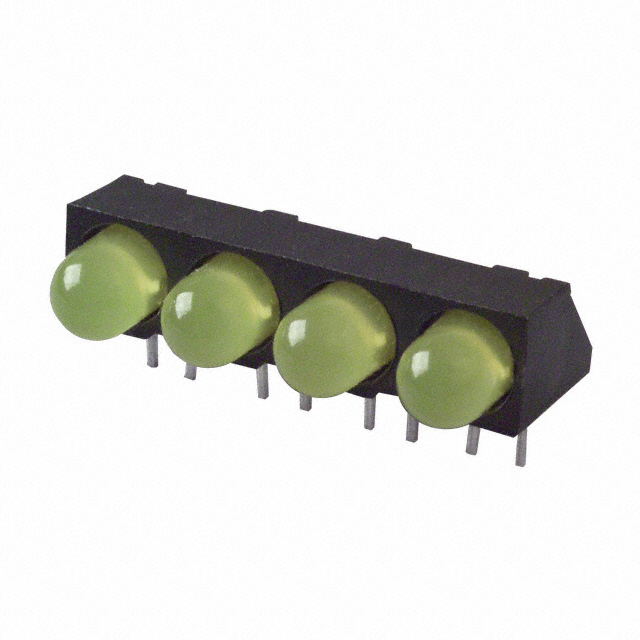

Visual Communications Company (VCC) 5640H7 is a right-angle LED circuit board indicator featuring a quad configuration of four wide, 5mm diffused, tinted yellow LEDs. Each LED operates at a forward voltage of 2.1V and a typical forward current of 10mA, with a peak wavelength of 585nm and a millicandela rating of 6.3mcd. This component is designed for through-hole mounting and is supplied in bulk packaging. Its specific configuration and optical characteristics make it suitable for applications in industrial control, instrumentation, and consumer electronics where clear visual status indication is critical. The right-angle mounting facilitates efficient board layout in space-constrained designs.
Additional Information
Series: 5640HRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 10mA |
| Color | Yellow (x 4) |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 6.3mcd |
| Configuration | 4 Wide |
| Viewing Angle | - |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 585nm |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
Request a Quote
Clients Also Buy
5640H1

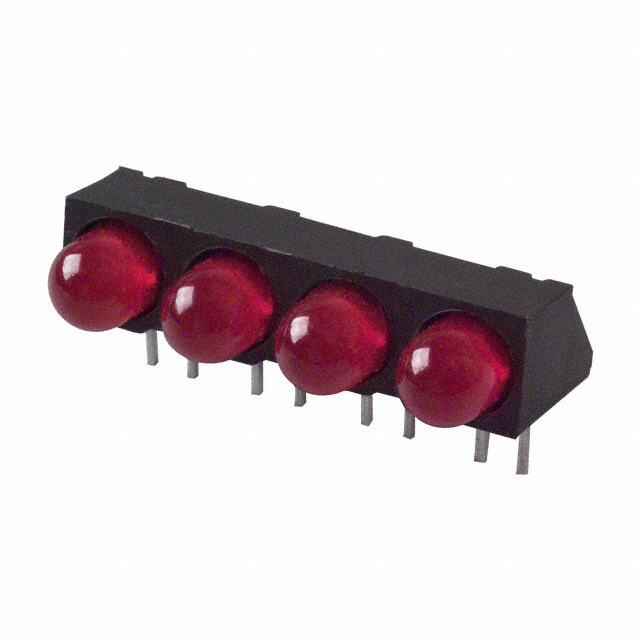

LED CBI 5MM QUAD RED RA
5640H3
LED CBI 5MM QUAD AMB RA
5640H5

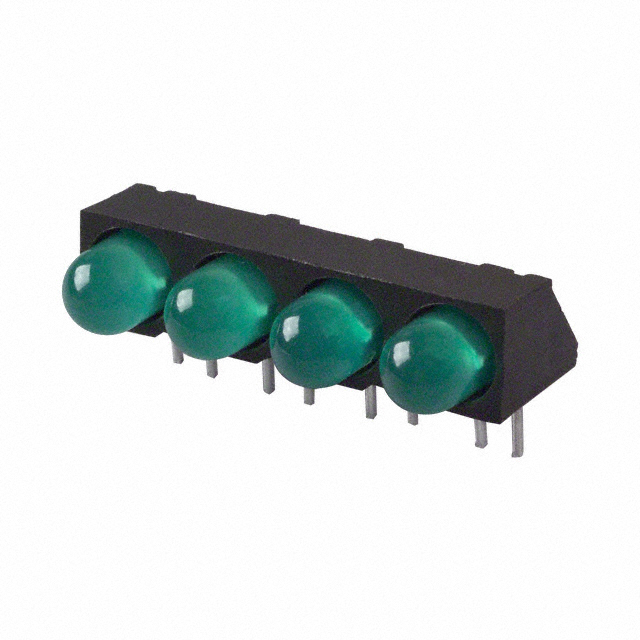

LED CBI 5MM QUAD GRN RA
