5638D1
LED CBI 5X2MM 8WIDE RED VERTManufacturer: Visual Communications Company - VCC
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

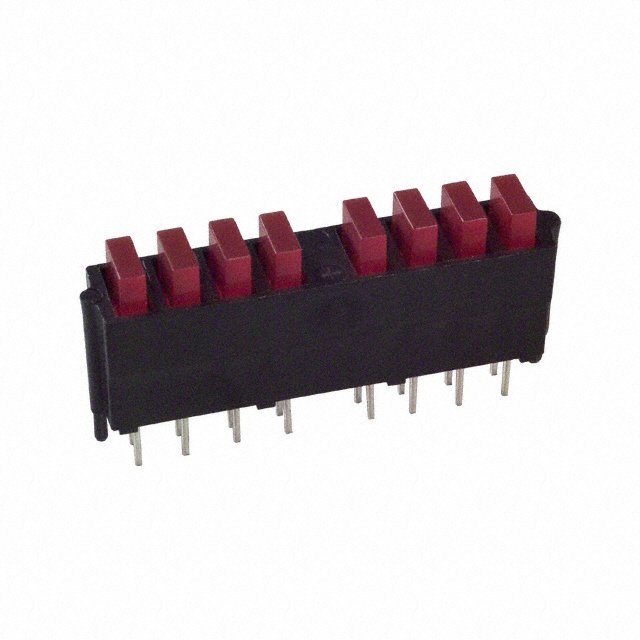

Visual Communications Company (VCC) 5638D1 is a compact LED Circuit Board Indicator featuring an 8-wide bar configuration. This component utilizes eight red tinted LEDs, each with a typical forward voltage of 2.1V and a recommended operating current of 10mA. The individual LEDs are housed in a DIP package with a rectangular, flat-top lens measuring 5.00mm x 2.00mm. The peak wavelength for the red emission is 700nm, providing a consistent color output. Designed for through-hole mounting, the VCC 5638D1 is suitable for applications in industrial control, consumer electronics, and instrumentation where clear visual feedback is required.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 10mA |
| Color | Red (x 8) |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole |
| Millicandela Rating | 1mcd |
| Configuration | Bar - 8 Wide, DIP |
| Viewing Angle | - |
| Lens Type | Tinted |
| Wavelength - Peak | 700nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.00mm x 2.00mm |
