5636D5
LED CBI 5.08X2.29MM GREEN RAManufacturer: Visual Communications Company - VCC
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

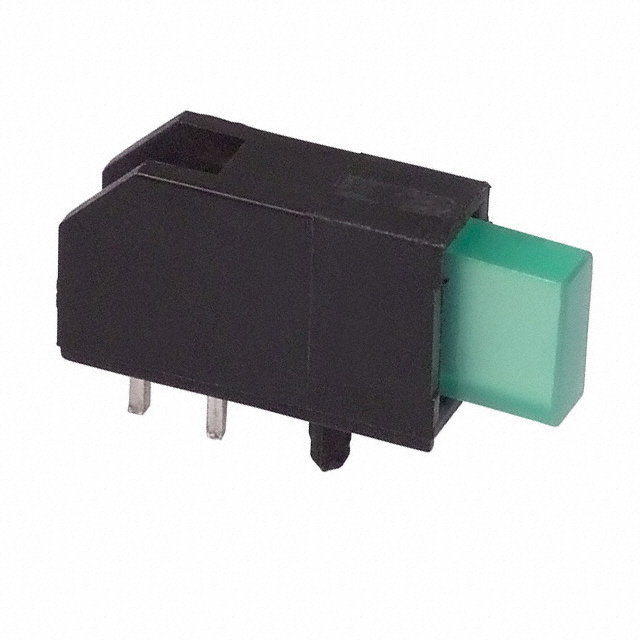

Visual Communications Company (VCC) 5636D5 is a single, right-angle, through-hole LED Circuit Board Indicator (CBI) from the 5636 series. This component features a green, tinted lens with a rectangle, flat-top profile measuring 5.08mm x 2.29mm. It operates at a forward voltage of 2.1V and a current of 20mA, achieving a typical millicandela rating of 4mcd at a peak wavelength of 565nm. Designed for reliable panel and chassis illumination, the VCC 5636D5 is commonly utilized in industrial control systems, medical equipment, and consumer electronics where clear visual feedback is critical. The right-angle mounting facilitates efficient board-level integration in compact designs.
Additional Information
Series: 5636RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Green |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 4mcd |
| Configuration | Single |
| Viewing Angle | - |
| Lens Type | Tinted |
| Wavelength - Peak | 565nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 5.08mm x 2.29mm |
Request a Quote
Clients Also Buy

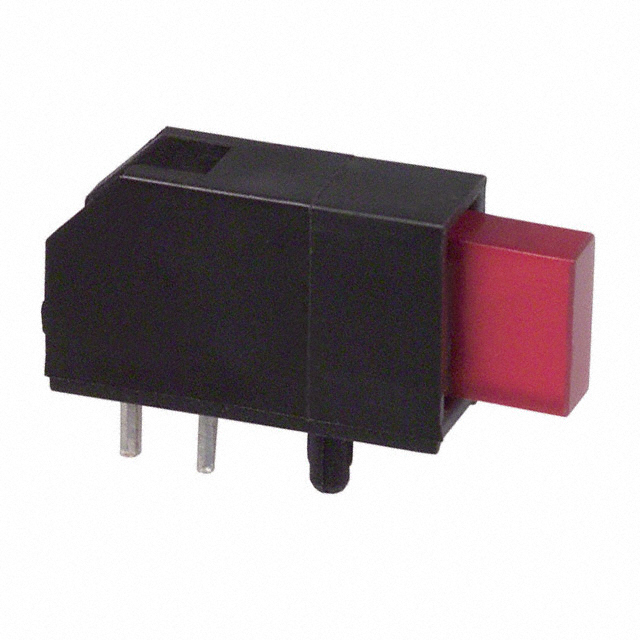

5636D1
