5611R1
LED CBI 7.3X2.4MM RED VERTManufacturer: Visual Communications Company - VCC
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More
Visual Communications Company (VCC) 5611R1 is a single red LED circuit board indicator from the 5611R series. This component features a diffused, tinted lens with a rectangular, flat-top profile measuring 7.30mm x 2.40mm. It operates with a forward voltage of 2.1V and a current rating of 20mA, providing a typical millicandela rating of 5mcd at its peak wavelength of 635nm. Designed for through-hole mounting, the VCC 5611R1 is suitable for applications in consumer electronics, industrial automation, and telecommunications equipment where reliable visual feedback is critical. The LED is supplied in bulk packaging.
Additional Information
Series: 5611RRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 20mA |
| Color | Red |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole |
| Millicandela Rating | 5mcd |
| Configuration | Single |
| Viewing Angle | - |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 635nm |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 7.30mm x 2.40mm |
Request a Quote
Clients Also Buy

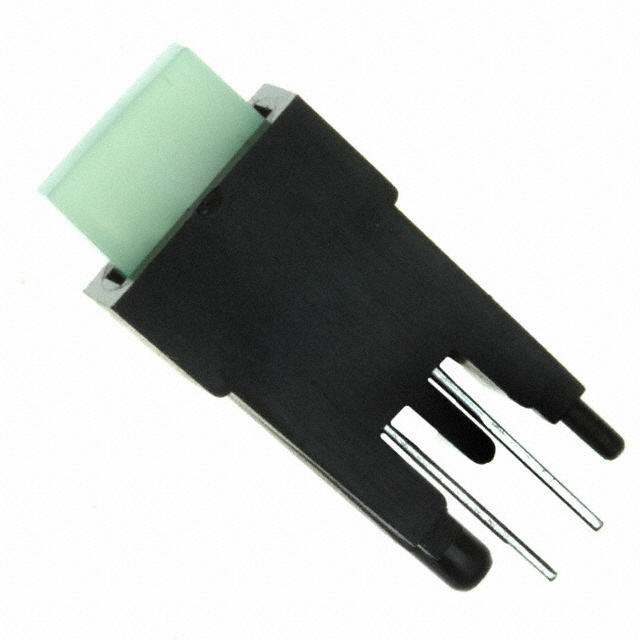

5611R5
LED CBI 7.3X2.4MM GREEN VERT

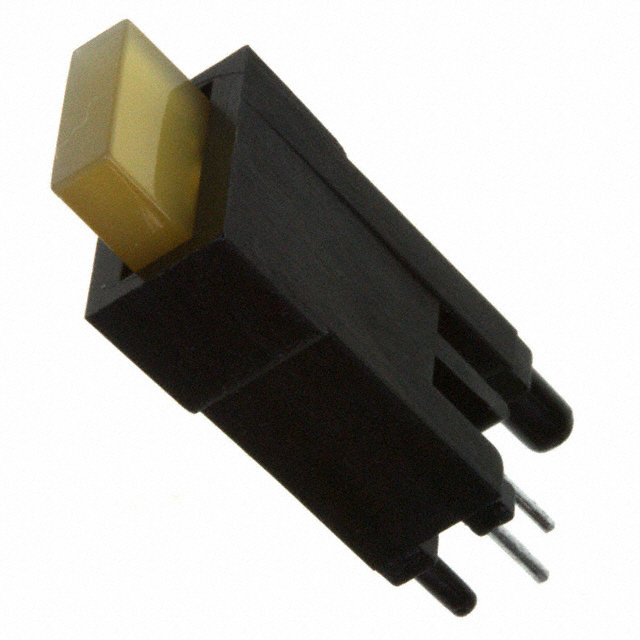

5611R7
