5360F1
LED CBI 3MM QUAD RED RAManufacturer: Visual Communications Company - VCC
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More
The Visual Communications Company (VCC) 5360F1 is a 4-wide, red, diffused, tinted LED Circuit Board Indicator. This right-angle, through-hole component features four individual 3mm (T-1) round, domed lenses, each rated for 2V and 10mA with a typical millicandela rating of 10mcd at 650nm peak wavelength. The R/A mounting facilitates efficient board space utilization in applications requiring directional illumination. This series is commonly integrated into industrial control panels, medical equipment, and consumer electronics for status indication. The bulk packaging is suitable for high-volume manufacturing environments.
Additional Information
Series: 5360RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 10mA |
| Color | Red (x 4) |
| Voltage Rating | 2V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 10mcd |
| Configuration | 4 Wide |
| Viewing Angle | - |
| Lens Type | Diffused, Tinted |
| Wavelength - Peak | 650nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
Request a Quote
Clients Also Buy

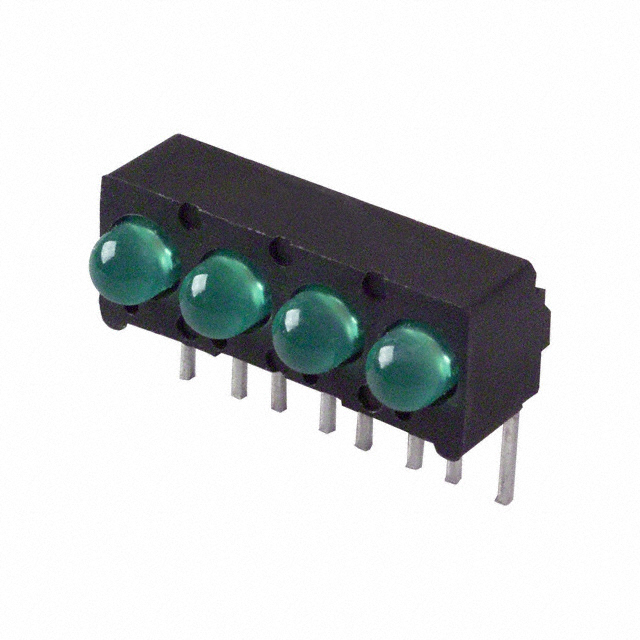

5360F5
LED CBI QUAD GREEN RA PCB

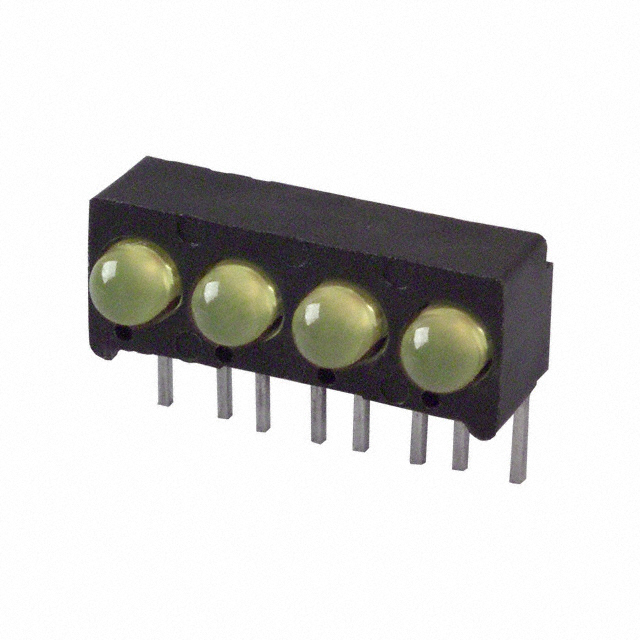

5360F7
