5306H5
LED CBI 5MM GRN RA PCBManufacturer: Visual Communications Company - VCC
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

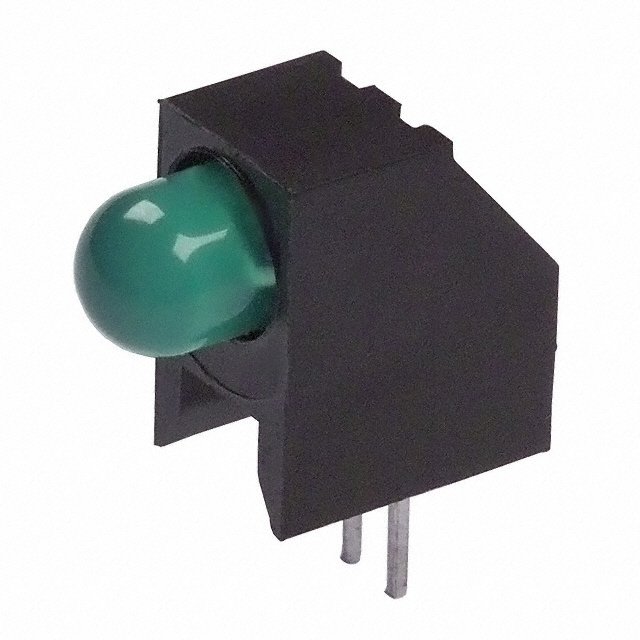

Visual Communications Company (VCC) 5306H5 is a single, right-angle LED Circuit Board Indicator. Featuring a 5mm (T-1 3/4) green tinted lens with a domed top, this component is designed for through-hole mounting on printed circuit boards. It operates at a forward voltage of 2.2V and a current of 10mA, with a typical peak wavelength of 563nm and a millicandela rating of 10mcd. The 5306 series indicator is commonly utilized in industrial automation, consumer electronics, and medical equipment for status indication and panel illumination applications. This component is supplied in bulk packaging.
Additional Information
Series: 5306RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 10mA |
| Color | Green |
| Voltage Rating | 2.2V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 10mcd |
| Configuration | Single |
| Viewing Angle | - |
| Lens Type | Tinted |
| Wavelength - Peak | 563nm |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
Request a Quote
Clients Also Buy

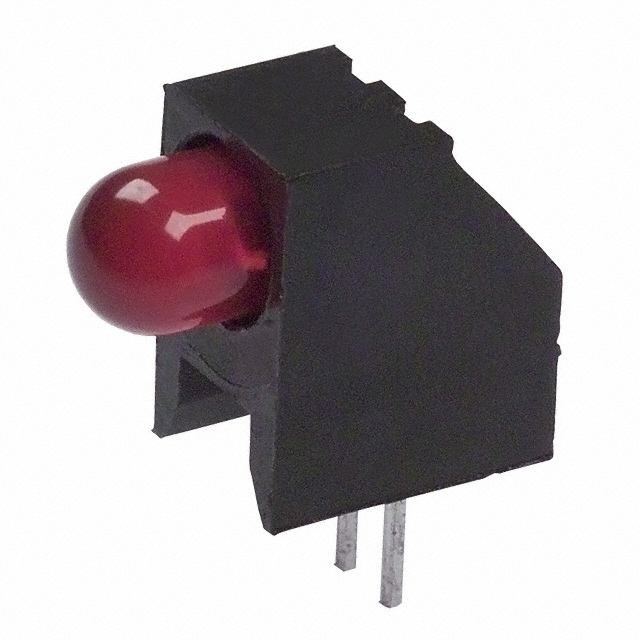

5306H1
LED CBI 5MM RED RA PCB
5306H1/5
LED CBI 5MM GRN/RED RA

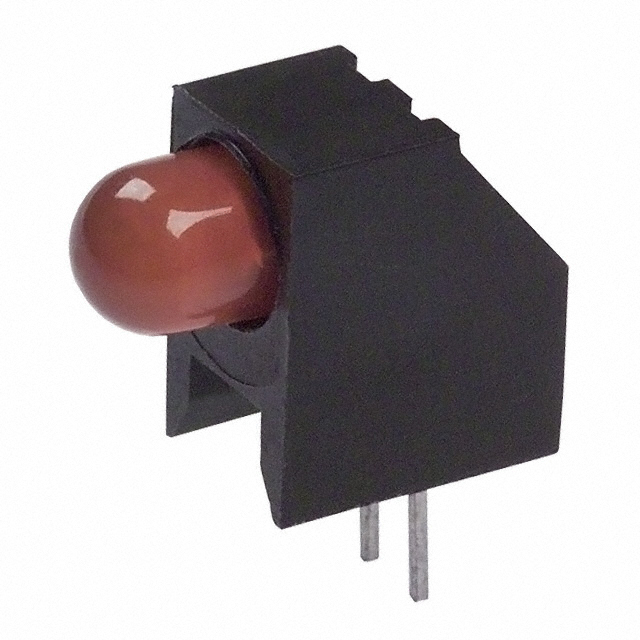

5306H3
