5305H3/5
LED CBI 3MM AMB/GRN RAManufacturer: Visual Communications Company - VCC
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More
Visual Communications Company (VCC) 5305H3-5 is a dual-color, single LED circuit board indicator. This component features 3mm (T-1) diffused lenses with a white coating, presenting both Amber and Green light outputs from a single package. Designed for through-hole mounting with a right-angle orientation, it is suitable for space-constrained PCB layouts. The Amber output operates at a forward voltage of 2.1V and a current of 10mA, with a peak wavelength of 610nm. The Green output also operates at 2.1V and 10mA, with a peak wavelength of 565nm. Both colors exhibit a nominal millicandela rating of 5mcd. This component is commonly utilized in industrial automation, test and measurement equipment, and control panel indicators where distinct visual feedback is required. It is supplied in bulk packaging.
Additional Information
Series: 5305RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 10mA |
| Color | Amber, Green |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 5mcd |
| Configuration | Single |
| Viewing Angle | - |
| Lens Type | Diffused, White |
| Wavelength - Peak | 610nm, 565nm |
| Lens Style | Round with Domed Top |
| Lens Size | 3mm, T-1 |
Request a Quote
Clients Also Buy

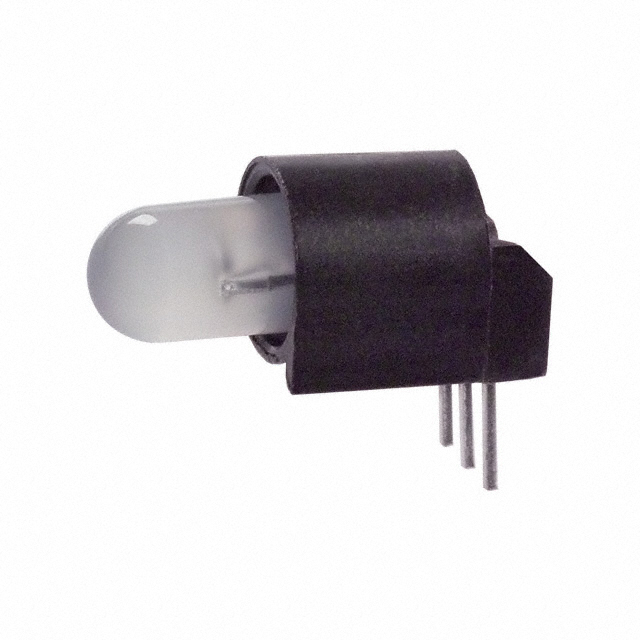

5305H1/5
