5302H5-5V
LED CBI 2MM GREEN RAManufacturer: Visual Communications Company - VCC
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

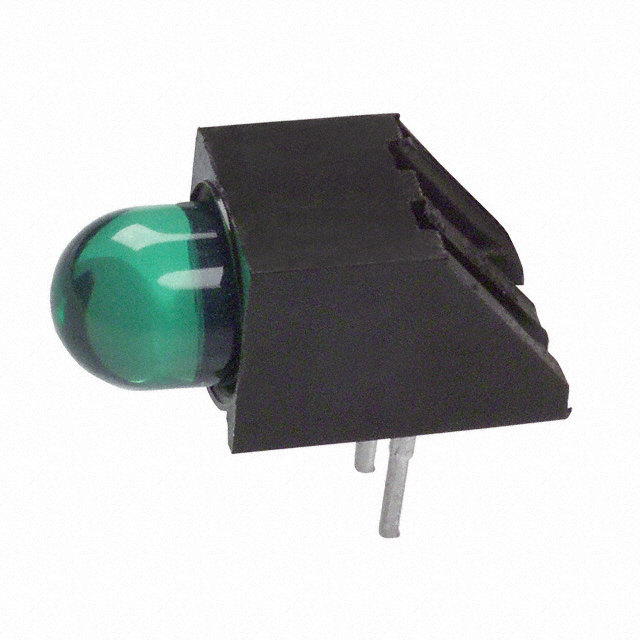

Visual Communications Company (VCC) 5300 Series LED Circuit Board Indicator, part number 5302H5-5V. This single, green, tinted, domed-top LED features a 2.00mm diameter and a 5V operating voltage. Designed for through-hole mounting with a right-angle configuration, this component offers a typical forward current of 12mA and a peak wavelength of 565nm, delivering 8mcd luminous intensity. Its robust construction and right-angle orientation make it suitable for applications in industrial automation, medical equipment, and consumer electronics where space-constrained board layouts and clear visual feedback are critical. Supplied in bulk packaging.
Additional Information
Series: 5300RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 12mA |
| Color | Green |
| Voltage Rating | 5V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 8mcd |
| Configuration | Single |
| Viewing Angle | - |
| Lens Type | Tinted |
| Wavelength - Peak | 565nm |
| Lens Style | Round with Domed Top |
| Lens Size | 2.00mm Dia |
