5300H7
LED CBI 2MM YELLOW RA PCBManufacturer: Visual Communications Company - VCC
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

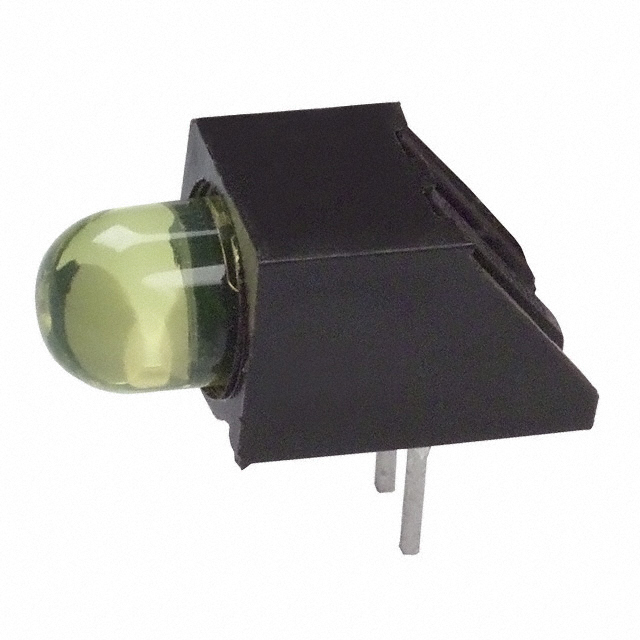

Visual Communications Company (VCC) 5300H7 is a single, right-angle LED Circuit Board Indicator (CBI) from the 5300 series. This component features a 2.00mm diameter, round, domed-top, tinted yellow lens with a peak wavelength of 585nm. Operating at a forward voltage of 2.1V and a forward current of 10mA, it provides a typical luminous intensity of 6.3mcd. Designed for through-hole mounting, the 5300H7 is suitable for applications in industrial automation, telecommunications, and medical equipment where reliable board-level status indication is critical. This component is supplied in bulk packaging.
Additional Information
Series: 5300RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 10mA |
| Color | Yellow |
| Voltage Rating | 2.1V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 6.3mcd |
| Configuration | Single |
| Viewing Angle | - |
| Lens Type | Tinted |
| Wavelength - Peak | 585nm |
| Lens Style | Round with Domed Top |
| Lens Size | 2.00mm Dia |
