5300H3
LED CBI 2MM AMBER RA PCBManufacturer: Visual Communications Company - VCC
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

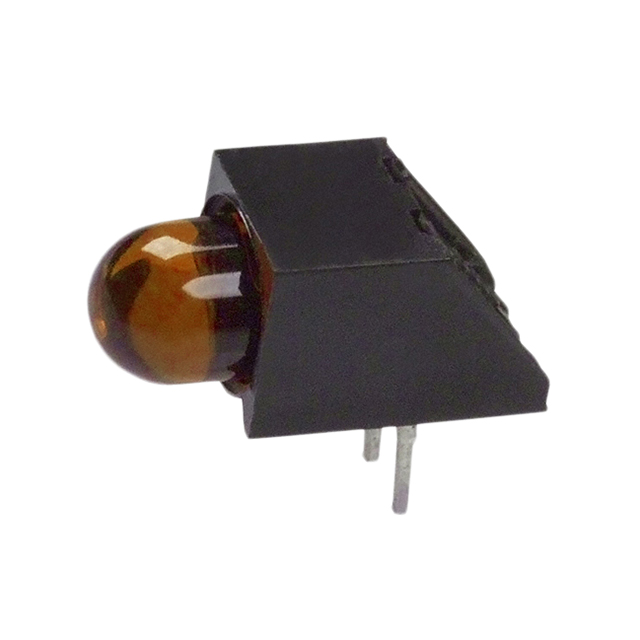

The Visual Communications Company (VCC) 5300H3 is a single, right-angle LED Circuit Board Indicator from the 5300 series. This component features a 2.00mm diameter, round, domed-top amber lens, emitting light at a peak wavelength of 608nm. It operates with a forward voltage of 2V and a continuous forward current of 60mA, delivering a typical luminous intensity of 10 millicandela. Designed for through-hole mounting, its right-angle configuration facilitates efficient board layout in applications such as consumer electronics, industrial control systems, and telecommunications equipment. This component is supplied in bulk packaging.
Additional Information
Series: 5300RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 60mA |
| Color | Amber |
| Voltage Rating | 2V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 10mcd |
| Configuration | Single |
| Viewing Angle | - |
| Lens Type | - |
| Wavelength - Peak | 608nm |
| Lens Style | Round with Domed Top |
| Lens Size | 2.00mm Dia |
