5300H1LC
LED CBI 2MM RED RA PCBManufacturer: Visual Communications Company - VCC
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

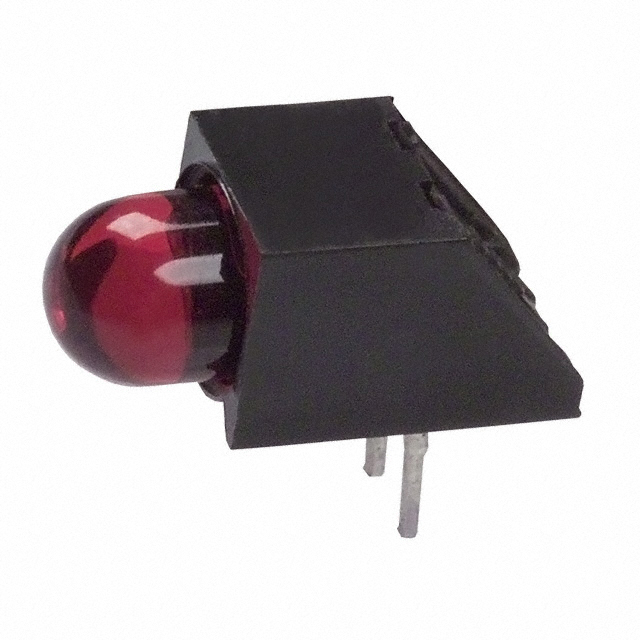

Visual Communications Company (VCC) 5300H1LC is a single, red-tinted, round domed LED circuit board indicator from the 5300 series. This right-angle, through-hole component features a 2.00mm diameter lens and operates at a forward voltage of 1.8V and a current of 2mA, with a typical millicandela rating of 2.3mcd and a peak wavelength of 635nm. Its right-angle mounting facilitates efficient PCB layout in applications such as industrial automation, consumer electronics, and medical devices where compact and precise visual feedback is critical. The bulk packaging is suitable for high-volume manufacturing environments.
Additional Information
Series: 5300RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 2mA |
| Color | Red |
| Voltage Rating | 1.8V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 2.3mcd |
| Configuration | Single |
| Viewing Angle | - |
| Lens Type | Tinted |
| Wavelength - Peak | 635nm |
| Lens Style | Round with Domed Top |
| Lens Size | 2.00mm Dia |
