5300H1/5
LED CBI 2MM GRN/RED RAManufacturer: Visual Communications Company - VCC
Categories: Circuit Board Indicators, Arrays, Light Bars, Bar Graphs
Quality Control: Learn More

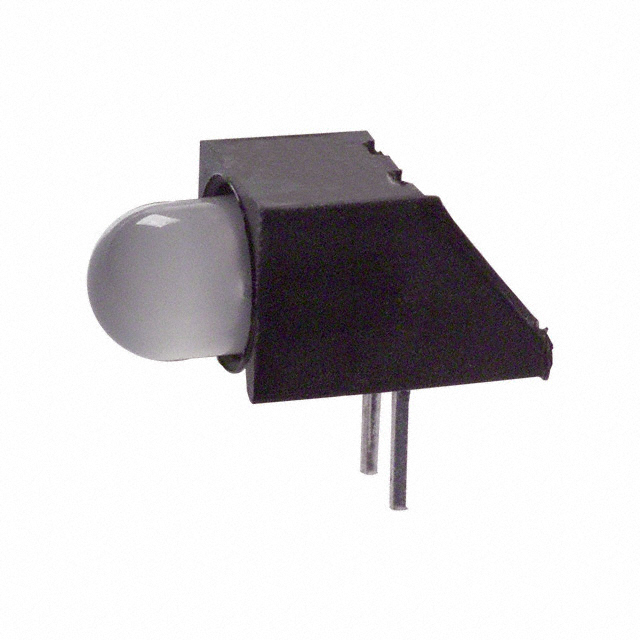

Visual Communications Company (VCC) 5300H1-5 is a single, dual-color LED Circuit Board Indicator (CBI) featuring a Green/Red diffused lens with a white diffused overlay. This right-angle, through-hole component utilizes a 2.00mm diameter round, domed lens. It operates with a forward voltage of 2.2V and a typical current of 10mA, offering a millicandela rating of 6mcd for both colors. The peak wavelengths are 565nm for green and 650nm for red. This CBI is commonly employed in industrial automation, consumer electronics, and medical equipment for status indication and visual feedback.
Additional Information
Series: 5300RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Current | 10mA |
| Color | Green, Red |
| Voltage Rating | 2.2V |
| Mounting Type | Through Hole, Right Angle |
| Millicandela Rating | 6mcd |
| Configuration | Single |
| Viewing Angle | - |
| Lens Type | Diffused, White |
| Wavelength - Peak | 565nm, 650nm |
| Lens Style | Round with Domed Top |
| Lens Size | 2.00mm Dia |
Request a Quote
