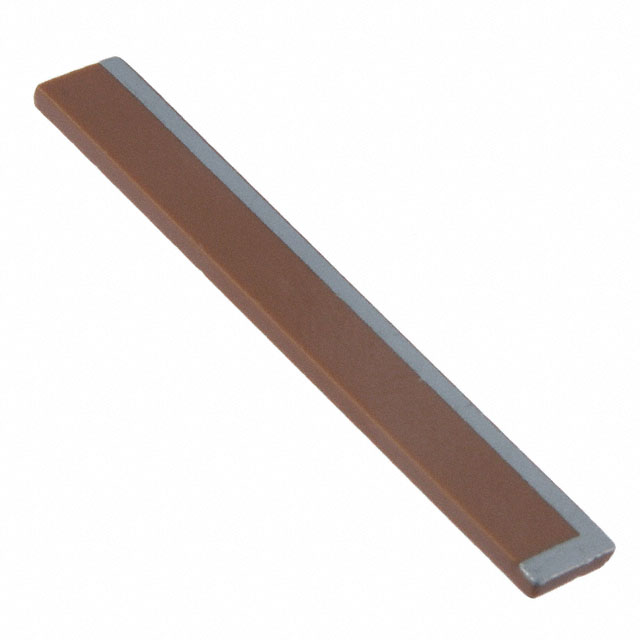

VJ3505M011SXMSRA0
RF ANT CHIP SOLDER SMDManufacturer: Vishay Vitramon
Categories: RF Antennas
Quality Control: Learn More
Vishay Vitramon VJ3505M011SXMSRA0 is a surface mount RF antenna designed for the UHF frequency group, operating within the 470MHz to 860MHz range. This chip antenna features a solder termination and is supplied on tape and reel for efficient automated assembly. With a maximum height of 0.047 inches (1.20mm), it offers a compact footprint suitable for space-constrained applications. The Vishay Vitramon VJ3505M011SXMSRA0 is a single-band component, engineered for reliable performance in various wireless communication systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Mounting Type | Surface Mount |
| Frequency Range | 470MHz ~ 860MHz |
| Applications | - |
| Gain | -0.5dBi |
| Termination | Solder |
| Ingress Protection | - |
| Number of Bands | 1 |
| VSWR | - |
| Antenna Type | Chip |
| Height (Max) | 0.047"" (1.20mm) |
| Return Loss | - |
| Frequency Group | UHF (300MHz ~ 1GHz) |
| Frequency (Center/Band) | - |
| RF Family/Standard | - |
