VJ3040Y224KXGAT8R
CAP CER 0.22UF 1KV X7R 3040Manufacturer: Vishay Vitramon
Categories: Ceramic Capacitors
Quality Control: Learn More

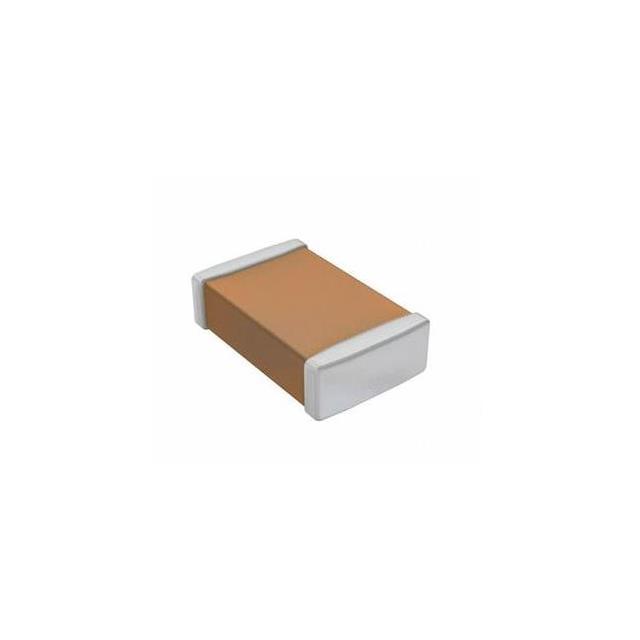

Vishay Vitramon VJ3040Y224KXGAT8R is a multilayer ceramic capacitor from the VJ, CDC series. This MLCC offers a capacitance of 0.22 µF with a ±10% tolerance and a high-voltage rating of 1000V (1kV). Featuring an X7R temperature coefficient, it maintains stable performance across its operating temperature range of -55°C to 125°C. The component is housed in a 3040 (7610 Metric) surface-mount package, measuring 0.300" L x 0.400" W (7.62mm x 10.16mm) with a maximum thickness of 0.100" (2.54mm). Designed for high pulse current applications, this capacitor is supplied on tape and reel. It finds application in industries such as automotive and industrial power systems.
Additional Information
Series: VJ, CDCRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Lead Style | - |
| Features | Integrated Bleed Resistor, High Voltage |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 1000V (1kV) |
| Package / Case | 3040 (7610 Metric) |
| Temperature Coefficient | X7R |
| Size / Dimension | 0.300"" L x 0.400"" W (7.62mm x 10.16mm) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature | -55°C ~ 125°C |
| Applications | High Pulse Current |
| Lead Spacing | - |
| Ratings | - |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.100"" (2.54mm) |
| Capacitance | 0.22 µF |
