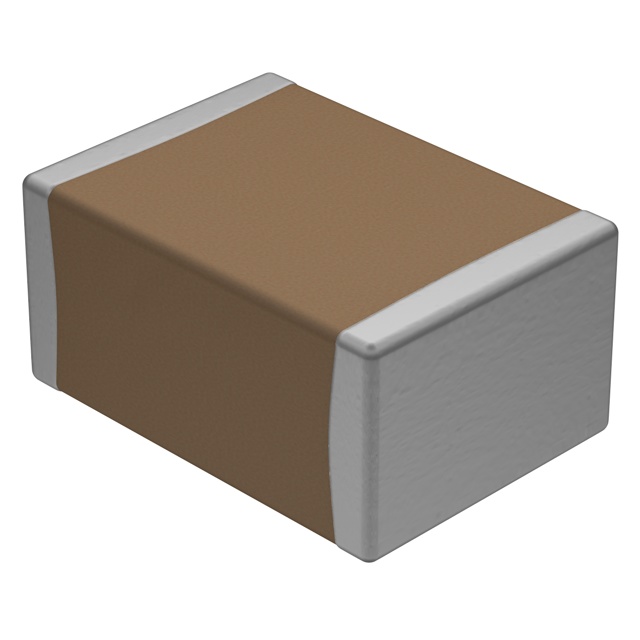

VJ1812A180JBCAT4X
CAP CER 18PF 200V NP0 1812Manufacturer: Vishay Vitramon
Categories: Ceramic Capacitors
Quality Control: Learn More
The Vishay Vitramon VJ1812A180JBCAT4X is a high-reliability, surface-mount multilayer ceramic capacitor from the VJ OMD series. This component offers a capacitance of 18 pF with a tight tolerance of ±5% and a voltage rating of 200V. Its dielectric is C0G/NP0, ensuring excellent temperature stability and low dissipation factor, making it suitable for applications requiring high precision and stability. The 1812 (4532 Metric) case size provides robust mechanical characteristics, and the "Open Mode" feature along with soft termination enhances its resistance to board flexing. This capacitor is commonly utilized in SMPS filtering and applications where boardflex sensitivity is a concern. It is supplied on a tape and reel for automated assembly. Operating temperature range is -55°C to 125°C.
Additional Information
Series: VJ OMDRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Lead Style | - |
| Features | Open Mode, Soft Termination |
| Packaging | Tape & Reel (TR) |
| Voltage - Rated | 200V |
| Package / Case | 1812 (4532 Metric) |
| Temperature Coefficient | C0G, NP0 |
| Size / Dimension | 0.183"" L x 0.126"" W (4.65mm x 3.20mm) |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature | -55°C ~ 125°C |
| Applications | SMPS Filtering, Boardflex Sensitive |
| Lead Spacing | - |
| Ratings | - |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.086"" (2.18mm) |
| Capacitance | 18 pF |
