CDMM50M0F5000FEF
CDMM, 2-SIDED, SOLDER COATED BROManufacturer: Vishay Techno
Categories: Resistor Networks, Arrays
Quality Control: Learn More

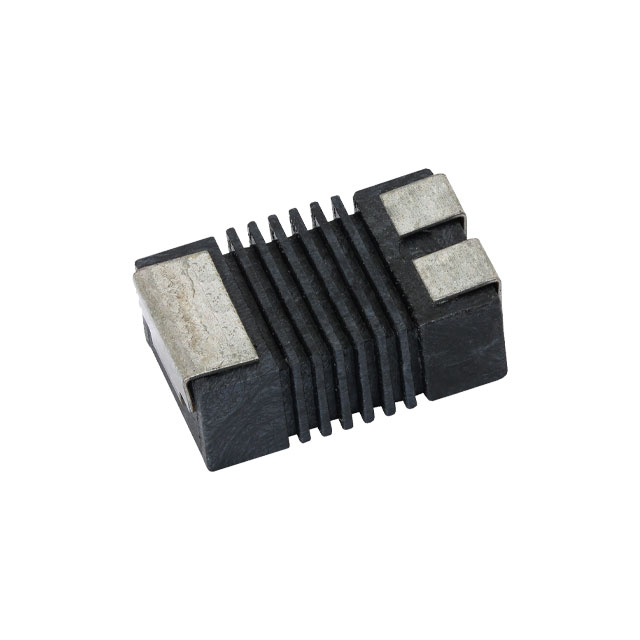

Vishay Techno CDMM series resistor network, part number CDMM50M0F5000FEF. This 2-sided, solder-coated, 4527 J-Lead package features a 2-resistor voltage divider configuration. Each element offers 50M Ohms resistance with a tight ±1% tolerance and 1.5W power rating. The TCR matching ratio is 0/ -50 ppm/°C, ensuring stable performance across its -55°C to 155°C operating temperature range. Dimensions are 0.455" L x 0.275" W (11.56mm x 6.98mm), with a seated height of 0.177" (4.49mm). Designed for surface mounting, this component is suitable for automotive applications meeting AEC-Q200 standards and where precise voltage division with TCR matching is critical. Supplied on tape and reel.
Additional Information
Series: CDMMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 50M |
| Tolerance | ±1% |
| Packaging | Tape & Reel (TR) |
| Power Per Element | 1.5W |
| Circuit Type | Voltage Divider |
| Number of Pins | 3 |
| Package / Case | 4527 J-Lead |
| Temperature Coefficient | 0/ -50ppm/°C |
| Size / Dimension | 0.455"" L x 0.275"" W (11.56mm x 6.98mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 155°C |
| Applications | Automotive AEC-Q200, Voltage Divider (TCR Matched) |
| Supplier Device Package | 4527 |
| Height - Seated (Max) | 0.177"" (4.49mm) |
| Resistor Matching Ratio | ±1% |
| Resistor-Ratio-Drift | 0/ -50 ppm/°C |
| Number of Resistors | 2 |
Request a Quote
Clients Also Buy
CDMM10M0F4000FEF
CDMM, 2-SIDED, SOLDER COATED BRO

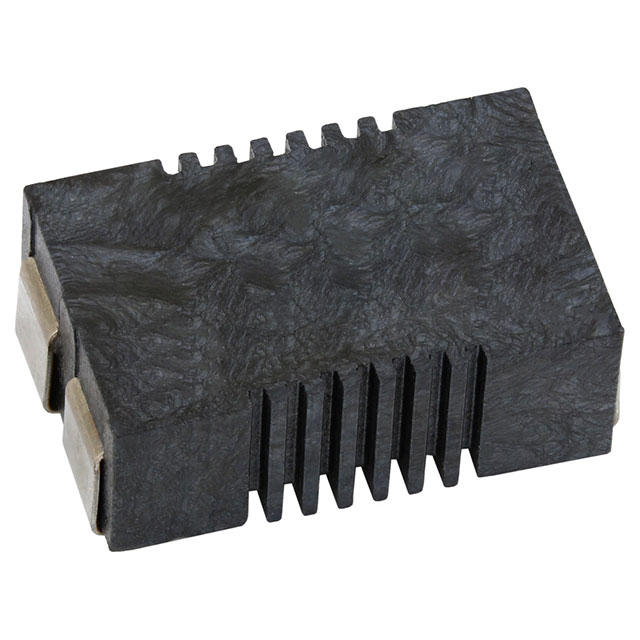

CDMM10M0F4000FET
