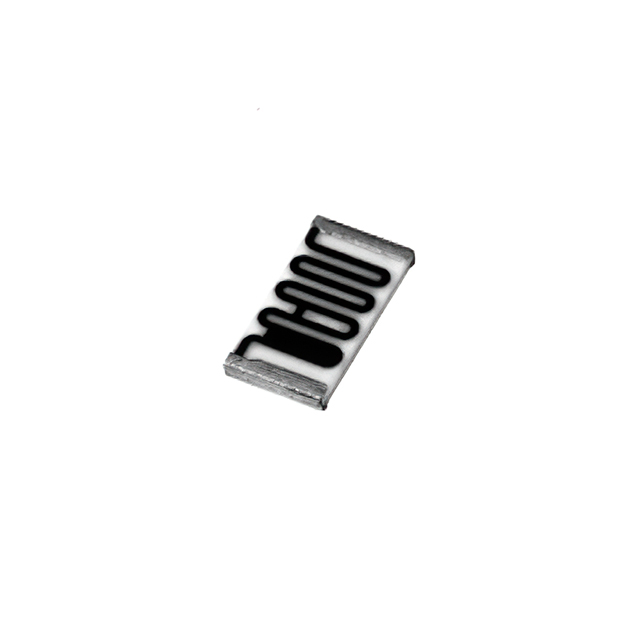

CDMA10M5F4500FEF
CDMA2512, 3-SIDED, SOLDER COATEDManufacturer: Vishay Techno
Categories: Resistor Networks, Arrays
Quality Control: Learn More
Vishay Techno CDMA series 2-resistor network, part number CDMA10M5F4500FEF. This surface mount device features a 2512 (6432 Metric) package with 3 terminals. Each resistor element offers 1W of power dissipation, with values of 23k Ohms and 10.5M Ohms, both specified with a ±1% tolerance. The network is designed for voltage divider applications, featuring TCR matched resistors with a ±10ppm/°C tracking. Qualified to Automotive AEC-Q200 standards, this component is suitable for demanding automotive environments. Its dimensions are 0.250" L x 0.126" W (6.35mm x 3.20mm) with a maximum seated height of 0.030" (0.76mm). The operating temperature range is -55°C to 155°C. Supplied in Tape & Reel packaging.
Additional Information
Series: CDMARoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Resistance (Ohms) | 23k, 10.5M |
| Tolerance | ±1% |
| Packaging | Tape & Reel (TR) |
| Power Per Element | 1W |
| Circuit Type | Voltage Divider |
| Number of Pins | 3 |
| Package / Case | 2512 (6432 Metric) |
| Temperature Coefficient | - |
| Size / Dimension | 0.250"" L x 0.126"" W (6.35mm x 3.20mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 155°C |
| Applications | Automotive AEC-Q200, Voltage Divider (TCR Matched) |
| Supplier Device Package | 2512 |
| Height - Seated (Max) | 0.030"" (0.76mm) |
| Grade | Automotive |
| Resistor Matching Ratio | ±1% |
| Resistor-Ratio-Drift | ±10ppm/°C |
| Number of Resistors | 2 |
| Qualification | AEC-Q200 |
