T86D336M016EAAS
CAP TANT 33UF 20% 16V 2917Manufacturer: Vishay Sprague
Categories: Tantalum Capacitors
Quality Control: Learn More

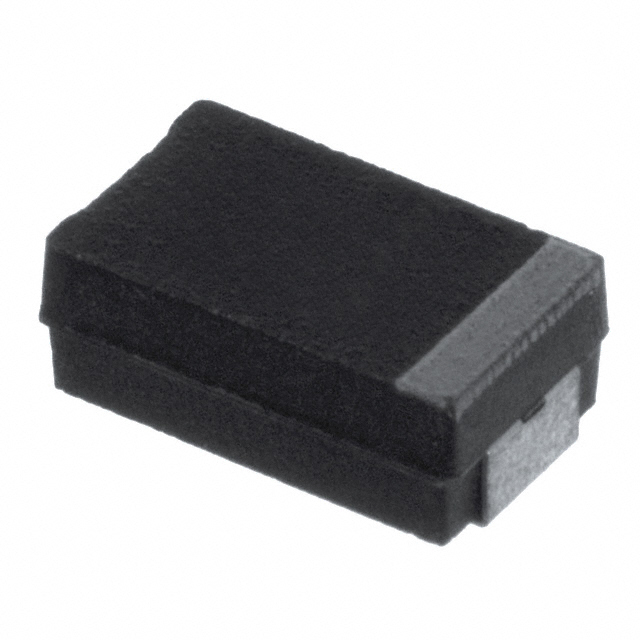

Vishay Sprague TANTAMOUNT™, T86 series tantalum capacitor, part number T86D336M016EAAS. This molded tantalum device offers 33 µF capacitance with a ±20% tolerance and a 16 V voltage rating. It features an Equivalent Series Resistance (ESR) of 700 mOhm and is housed in a 2917 (7343 Metric) surface mount package. The capacitor operates within a temperature range of -55°C to 125°C. Key features include fail-safe operation with a built-in fuse and high reliability, making it suitable for demanding applications. The dimensions are 0.287" L x 0.169" W (7.30mm x 4.30mm) with a maximum seated height of 0.122" (3.10mm). This COTS component is available on tape and reel.
Additional Information
Series: TANTAMOUNT™, T86RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | Fail Safe with Built-in Fuse, High Reliability |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension | 0.287"" L x 0.169"" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Type | Molded |
| Operating Temperature | -55°C ~ 125°C |
| Lead Spacing | - |
| Ratings | COTS |
| ESR (Equivalent Series Resistance) | 700mOhm |
| Lifetime @ Temp. | - |
| Manufacturer Size Code | D |
| Height - Seated (Max) | 0.122"" (3.10mm) |
| Failure Rate | - |
| Capacitance | 33 µF |
| Voltage - Rated | 16 V |
