M39003/01-8108
CAP TANT 6.8UF 10% 35V AXIALManufacturer: Vishay Sprague
Categories: Tantalum Capacitors
Quality Control: Learn More

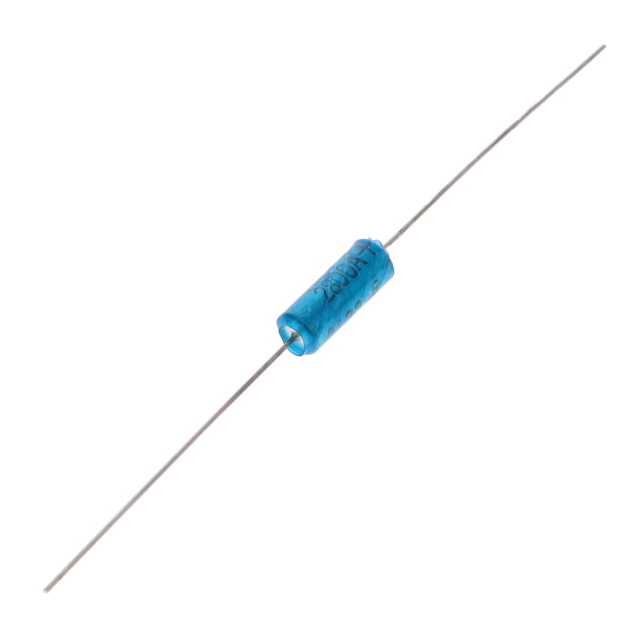

Vishay Sprague CSR13 series hermetically sealed tantalum capacitor, part number M39003-01-8108. This through-hole component offers a capacitance of 6.8 µF with a ±10% tolerance and a 35 V voltage rating. Designed for high reliability applications, it features a MIL-PRF-39003/1 qualification and a D failure rate (0.001% per 1000 hours). The axial package measures 0.185" dia x 0.474" L (4.70mm x 12.04mm) and operates across a temperature range of -55°C to 125°C. This component is suitable for demanding applications in aerospace, defense, and industrial sectors.
Additional Information
Series: CSR13RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Features | High Reliability |
| Packaging | Bulk |
| Package / Case | Axial |
| Size / Dimension | 0.185"" Dia x 0.474"" L (4.70mm x 12.04mm) |
| Mounting Type | Through Hole |
| Type | Hermetically Sealed |
| Operating Temperature | -55°C ~ 125°C |
| Lead Spacing | - |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | - |
| Manufacturer Size Code | B |
| Height - Seated (Max) | - |
| Failure Rate | D (0.001%) |
| Grade | Military |
| Capacitance | 6.8 µF |
| Voltage - Rated | 35 V |
| Qualification | MIL-PRF-39003/1 |
