M34C156K100BZSS
CAP TANT 15UF 10% 100V SMDManufacturer: Vishay Sprague
Categories: Tantalum Capacitors
Quality Control: Learn More
Vishay Sprague M34 Series 15 µF molded tantalum capacitor, part number M34C156K100BZSS. This surface mount component operates up to 100 V with a ±10% capacitance tolerance. Featuring a low Equivalent Series Resistance (ESR) of 3.5 Ohms, this capacitor is suitable for demanding applications across various industries, including aerospace, defense, and high-reliability industrial systems. Its molded construction and operating temperature range of -55°C to 125°C ensure robust performance in challenging environments. The capacitor dimensions are 21.20mm L x 8.00mm W with a seated height of 7.80mm.
Additional Information
Series: M34RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±10% |
| Features | Wet Tantalum |
| Packaging | Bulk |
| Package / Case | Nonstandard |
| Size / Dimension | 0.835"" L x 0.315"" W (21.20mm x 8.00mm) |
| Mounting Type | Surface Mount |
| Type | Molded |
| Operating Temperature | -55°C ~ 125°C |
| Lead Spacing | - |
| ESR (Equivalent Series Resistance) | 3.5Ohm |
| Lifetime @ Temp. | - |
| Manufacturer Size Code | C |
| Height - Seated (Max) | 0.307"" (7.80mm) |
| Failure Rate | - |
| Capacitance | 15 µF |
| Voltage - Rated | 100 V |
Request a Quote
Clients Also Buy

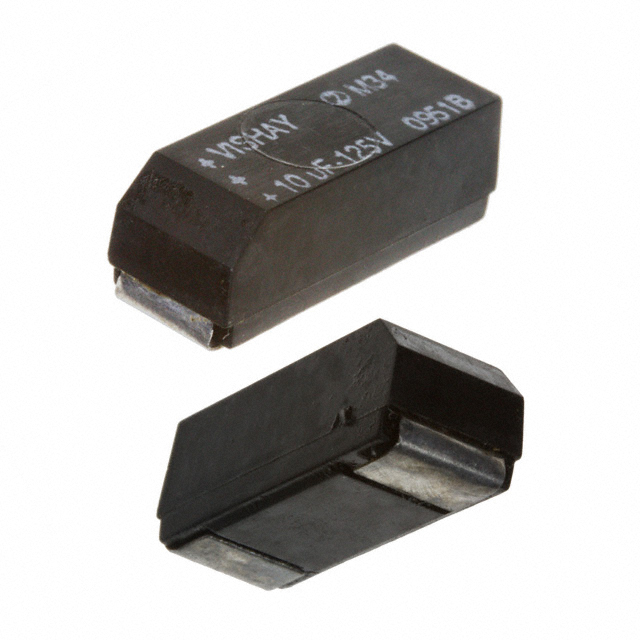

M34C106K125BZSS
CAP TANT 10UF 10% 125V SMD

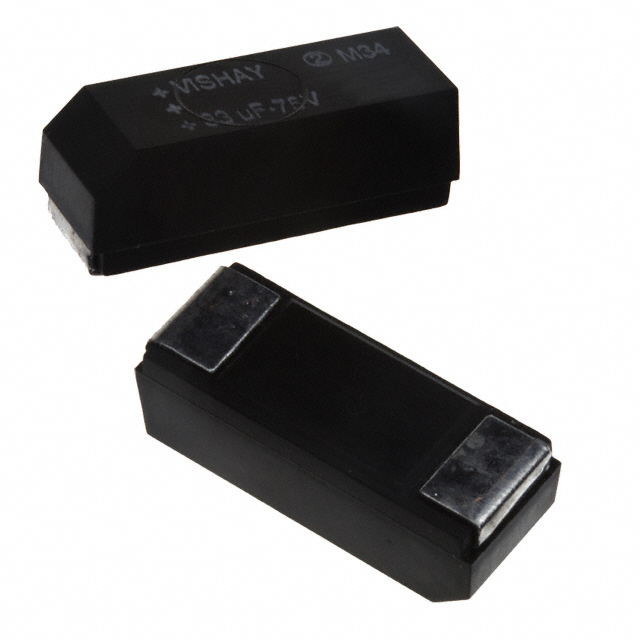

M34C107K030BZSS
