893D336X0025E2TE3
CAP TANT 33UF 20% 25V 2917Manufacturer: Vishay Sprague
Categories: Tantalum Capacitors
Quality Control: Learn More
Vishay Sprague TANTAMOUNT™, 893D series, 893D336X0025E2TE3. This molded tantalum capacitor offers 33 µF capacitance with a ±20% tolerance and a 25 V voltage rating. Featuring a low 600 mOhm ESR, this component is housed in a 2917 (7343 Metric) case. Its dimensions are 0.287 inches (7.30mm) length by 0.169 inches (4.30mm) width, with a maximum seated height of 0.170 inches (4.32mm). The operating temperature range is -55°C to 125°C. This surface mount device is supplied on tape and reel and includes a fail-safe feature with a built-in fuse. Applications include industrial, automotive, and consumer electronics.
Additional Information
Series: TANTAMOUNT™, 893DRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | Fail Safe with Built-in Fuse |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension | 0.287"" L x 0.169"" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Type | Molded |
| Operating Temperature | -55°C ~ 125°C |
| Lead Spacing | - |
| ESR (Equivalent Series Resistance) | 600mOhm |
| Lifetime @ Temp. | - |
| Manufacturer Size Code | E |
| Height - Seated (Max) | 0.170"" (4.32mm) |
| Failure Rate | - |
| Capacitance | 33 µF |
| Voltage - Rated | 25 V |
Request a Quote
Clients Also Buy

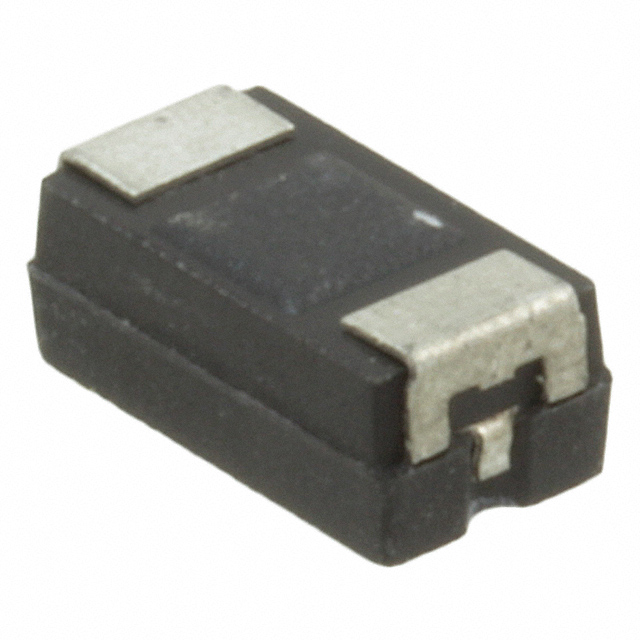

893D105X0050C2TE3
