T56D226M035CSA120
CAP TANT POLY 22UF 35V 2917Manufacturer: Vishay Sprague
Categories: Polymer Capacitors
Quality Control: Learn More

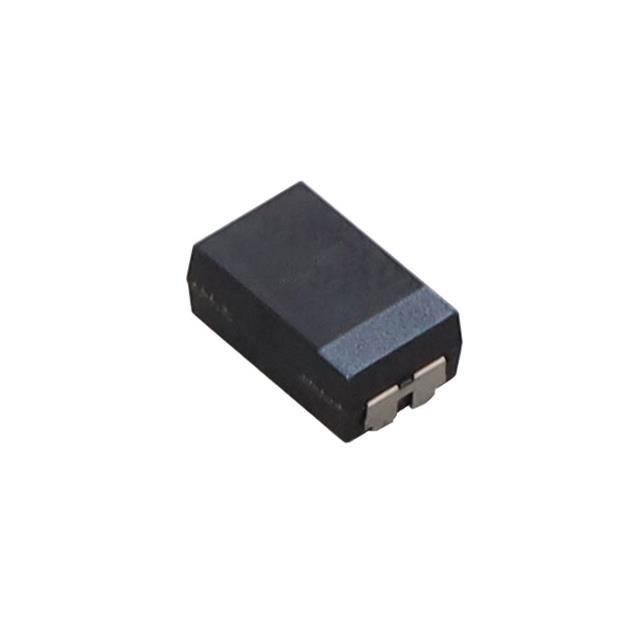

Vishay Sprague vPolyTan™ T56 series tantalum polymer capacitor, part number T56D226M035CSA120. This molded component offers a capacitance of 22 µF with a voltage rating of 35 V. Featuring a low Equivalent Series Resistance (ESR) of 120 mOhm at 100 kHz, this capacitor is housed in a 2917 (7343 Metric) surface mount package. Its dimensions are 0.287" L x 0.169" W (7.30mm x 4.30mm) with a maximum seated height of 0.122" (3.10mm). The operating temperature range is -55°C to 105°C. This capacitor is suitable for applications in the automotive and industrial sectors, known for its high reliability and COTS rating. It is supplied on tape and reel.
Additional Information
Series: vPolyTan™ T56RoHS Status: ROHS3 CompliantManufacturer Lead Time: 31 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Features | High Reliability |
| Packaging | Tape & Reel (TR) |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension | 0.287"" L x 0.169"" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Type | Molded |
| Operating Temperature | -55°C ~ 105°C |
| Lead Spacing | - |
| Ratings | COTS |
| ESR (Equivalent Series Resistance) | 120mOhm @ 100kHz |
| Lifetime @ Temp. | - |
| Manufacturer Size Code | D |
| Height - Seated (Max) | 0.122"" (3.10mm) |
| Capacitance | 22 µF |
| Voltage - Rated | 35 V |
