94SVPD396X0025F8
CAP ALUM POLY 39UF 20% 25V SMDManufacturer: Vishay Sprague
Categories: Polymer Capacitors
Quality Control: Learn More
The Vishay Sprague 94SVPD series aluminum polymer capacitor, part number 94SVPD396X0025F8, offers a capacitance of 39 µF with a ±20% tolerance and a 25 V rating. This Surface Mount device features a low ESR of 45 mOhm and a rated ripple current of 664 mA at 100 kHz. Designed for demanding applications, it operates within a temperature range of -55°C to 125°C and has a projected lifetime of 2000 hours at 125°C. The component is housed in a Radial, Can - SMD package with dimensions of 0.394" (10.00mm) diameter and 0.315" (8.00mm) height. Its typical applications include general purpose designs in automotive, industrial, and consumer electronics sectors. The component is supplied on a Tape & Reel (TR) for automated assembly.
Additional Information
Series: 94SVPDRoHS Status: ROHS3 CompliantManufacturer Lead Time: 19 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±20% |
| Packaging | Tape & Reel (TR) |
| Package / Case | Radial, Can - SMD |
| Size / Dimension | 0.394"" Dia (10.00mm) |
| Mounting Type | Surface Mount |
| Type | Polymer |
| Operating Temperature | -55°C ~ 125°C |
| Applications | General Purpose |
| Lead Spacing | - |
| Ratings | - |
| ESR (Equivalent Series Resistance) | 45mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Surface Mount Land Size | 0.406"" L x 0.406"" W (10.30mm x 10.30mm) |
| Height - Seated (Max) | 0.315"" (8.00mm) |
| Capacitance | 39 µF |
| Voltage - Rated | 25 V |
| Ripple Current @ Low Frequency | 33.2 mA @ 120 Hz |
| Ripple Current @ High Frequency | 664 mA @ 100 kHz |
Request a Quote
Clients Also Buy

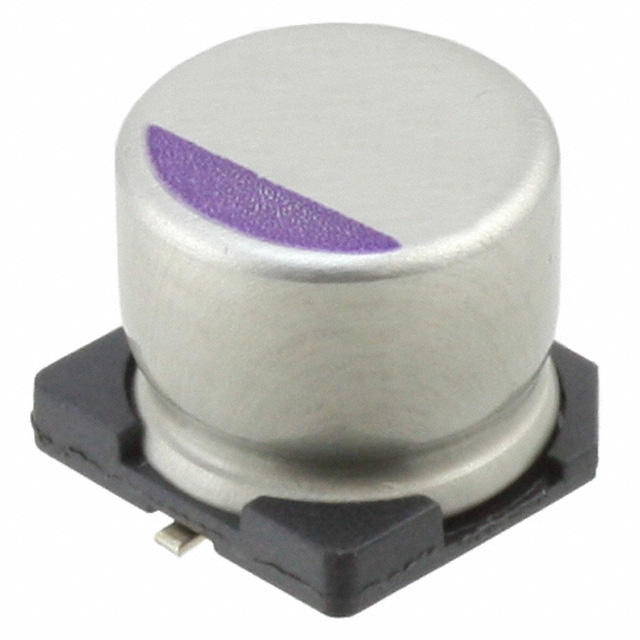

94SVPD106X0025C6
CAP ALUM POLY 10UF 20% 25V SMD

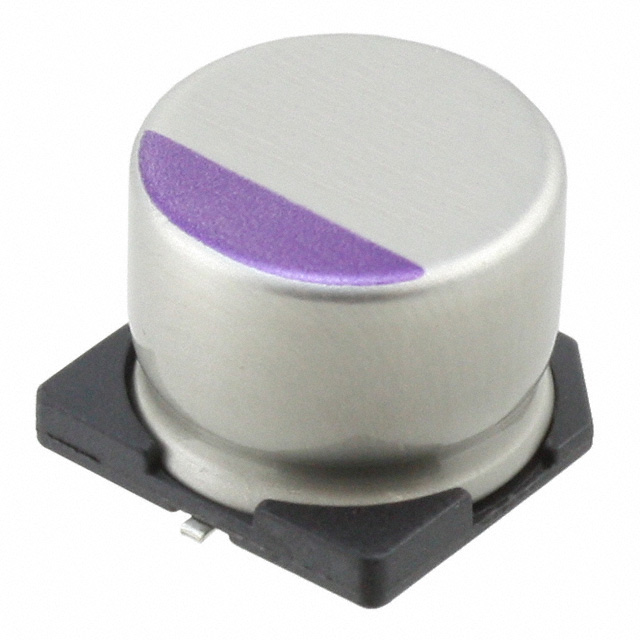

94SVPD186X0035F8
