715P22356KD3
CAP FILM 0.022UF 5% 600VDC RADManufacturer: Vishay Sprague
Categories: Film Capacitors
Quality Control: Learn More

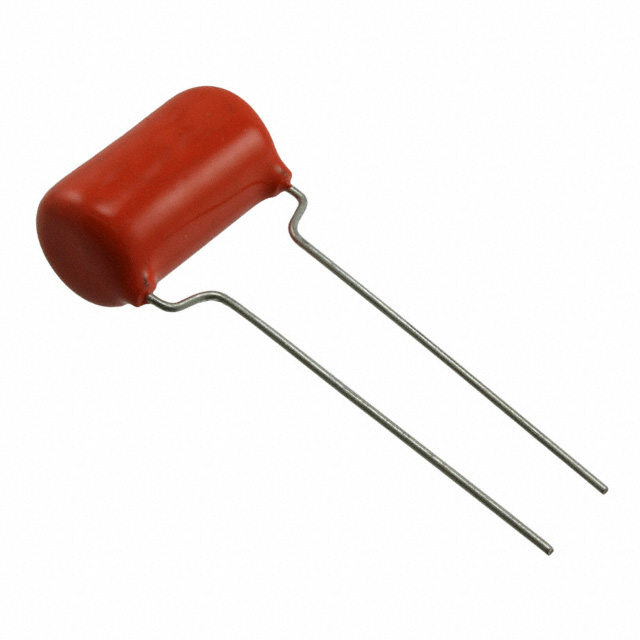

Vishay Sprague's Orange Drop® 715P series, part number 715P22356KD3, is a metallized polypropylene film capacitor. This component features a capacitance of 0.022 µF with a ±5% tolerance, a DC voltage rating of 600V, and an AC voltage rating of 200V. Designed for through-hole mounting, it offers radial packaging with a lead spacing of 9.50mm. The capacitor's dimensions are 12.20mm in diameter and 22.90mm in length, with a seated height of 19.60mm. Operating within a temperature range of -55°C to 85°C, this component is suitable for applications in audio, high-frequency switching, high pulse, and snubber circuits.
Additional Information
Series: Orange Drop® 715PRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±5% |
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 85°C |
| Applications | Audio; High Frequency, Switching; High Pulse, DV/DT; Snubber |
| Lead Spacing | 0.374"" (9.50mm) |
| Termination | PC Pins |
| Ratings | - |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 200V |
| Voltage Rating - DC | 600V |
| Height - Seated (Max) | 0.772"" (19.60mm) |
| Capacitance | 0.022 µF |
| Size / Dimension | 0.480"" Dia x 0.902"" L (12.20mm x 22.90mm) |
